Center Console Switch Cluster (SZM): Construction: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 BMW 530i, 2006 BMW 525i, 2006 BMW 330xi, 2006 BMW 330i, and 2006 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the equipment fitted, the switch cluster centre console can have different button combinations. Possible equipment specifications are, e.g.:

Seat Heating
Active Seat
Park Distance Control
Active Seat Back Width Adjustment (E60, E61 Only)

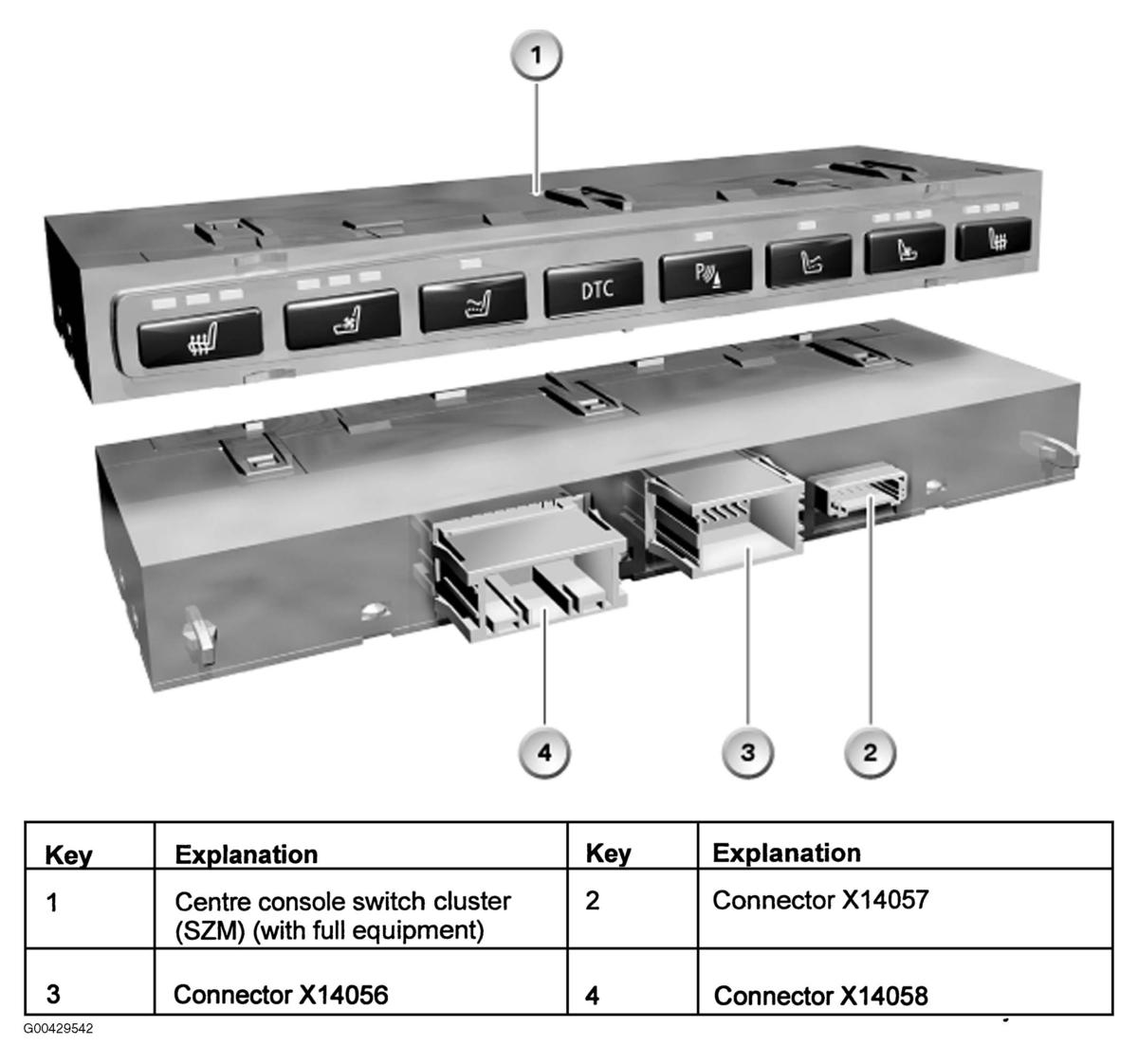

Fig 1: Identifying Centre Console Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

With full equipment, the centre console switch cluster (SZM) is connected to the rest of the vehicle electrical system by three plug connectors.
