Inputs/Outputs - E90, E91

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 BMW 530i, 2006 BMW 525i, 2006 BMW 330xi, 2006 BMW 330i, and 2006 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

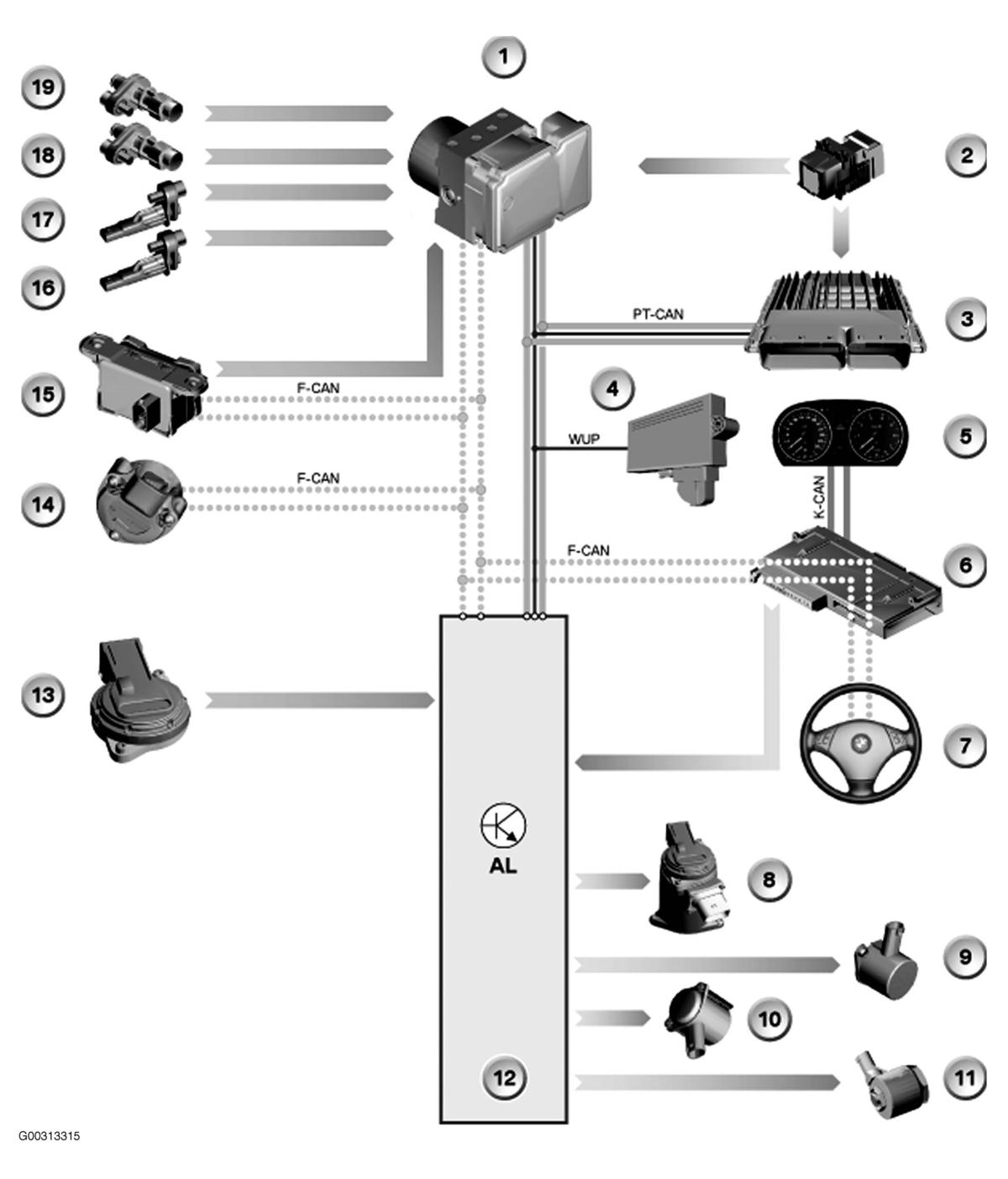

Fig 1: Active Steering Inputs/Outputs Flow Diagram (E90, E91)
G00313315Courtesy of BMW OF NORTH AMERICA, INC.

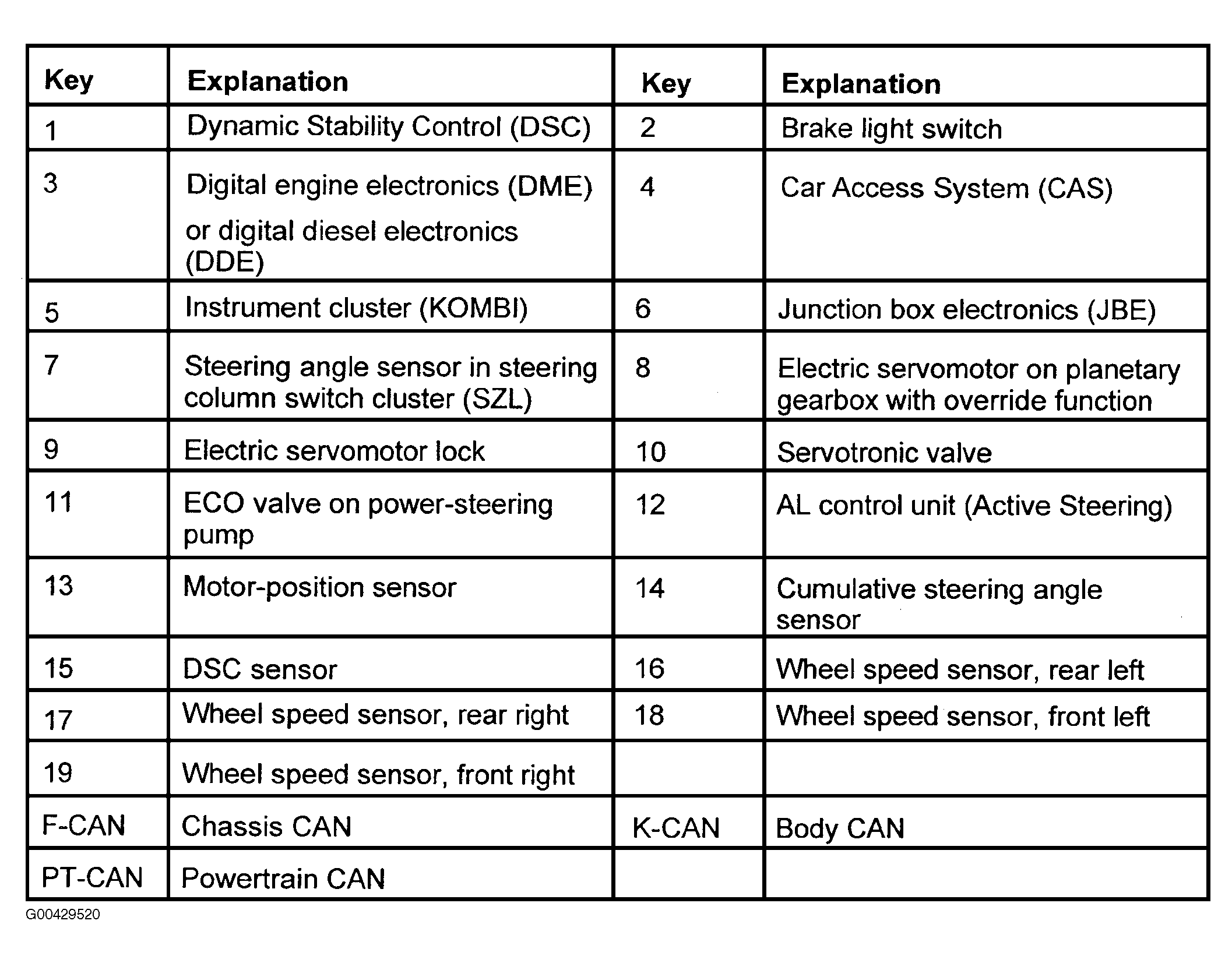

Fig 2: Legend For Active Steering Inputs/Outputs (E90. E91)
G00429520Courtesy of BMW OF NORTH AMERICA, INC.
