Inputs/Outputs - E60, E61, E63, E64 from 09/2005

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 BMW 530i, 2006 BMW 525i, 2006 BMW 330xi, 2006 BMW 330i, and 2006 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

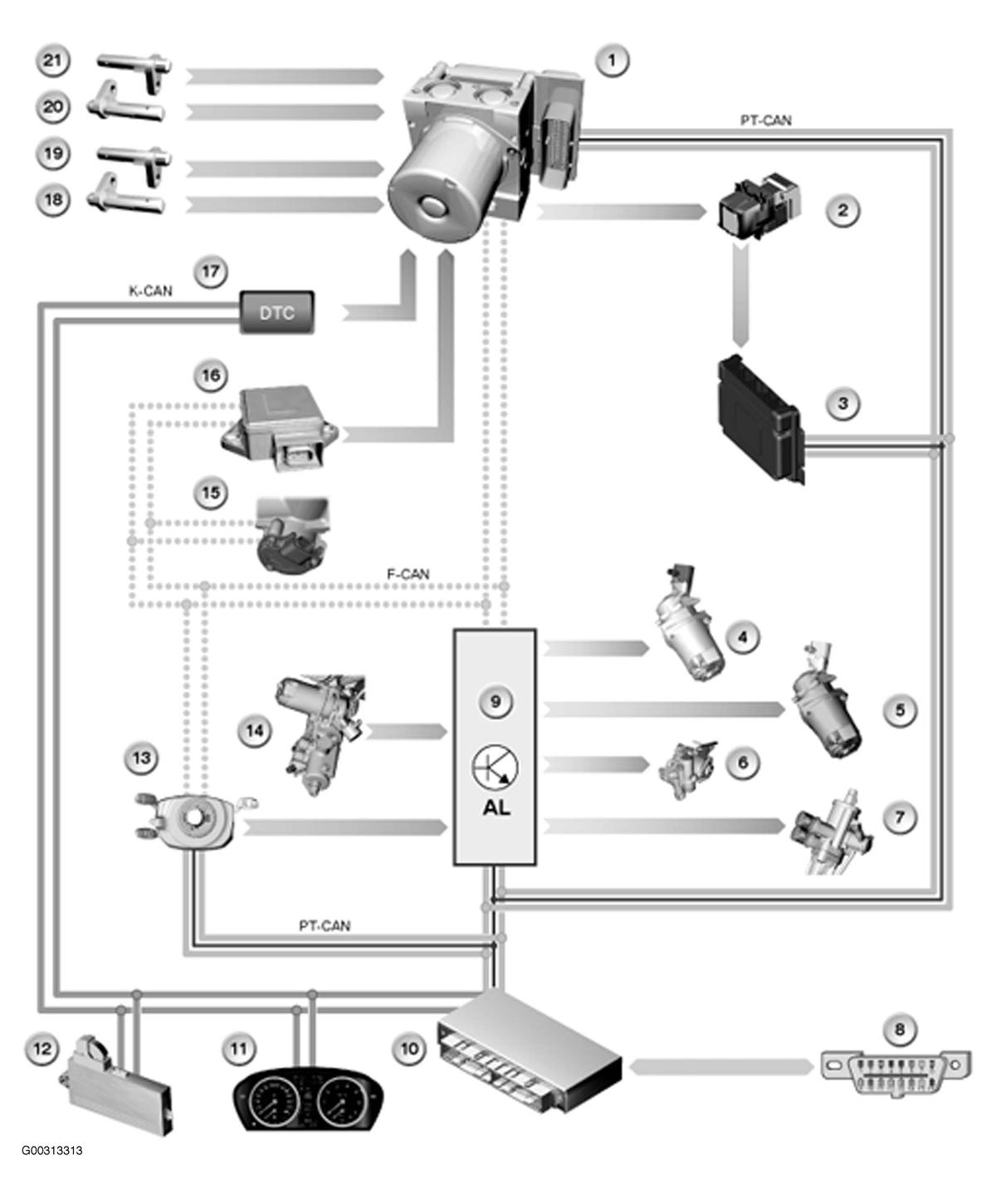

Fig 1: Active Steering Inputs/Outputs Flow Diagram (E60, E61, E63, E64 from 09/2005)
G00313313Courtesy of BMW OF NORTH AMERICA, INC.

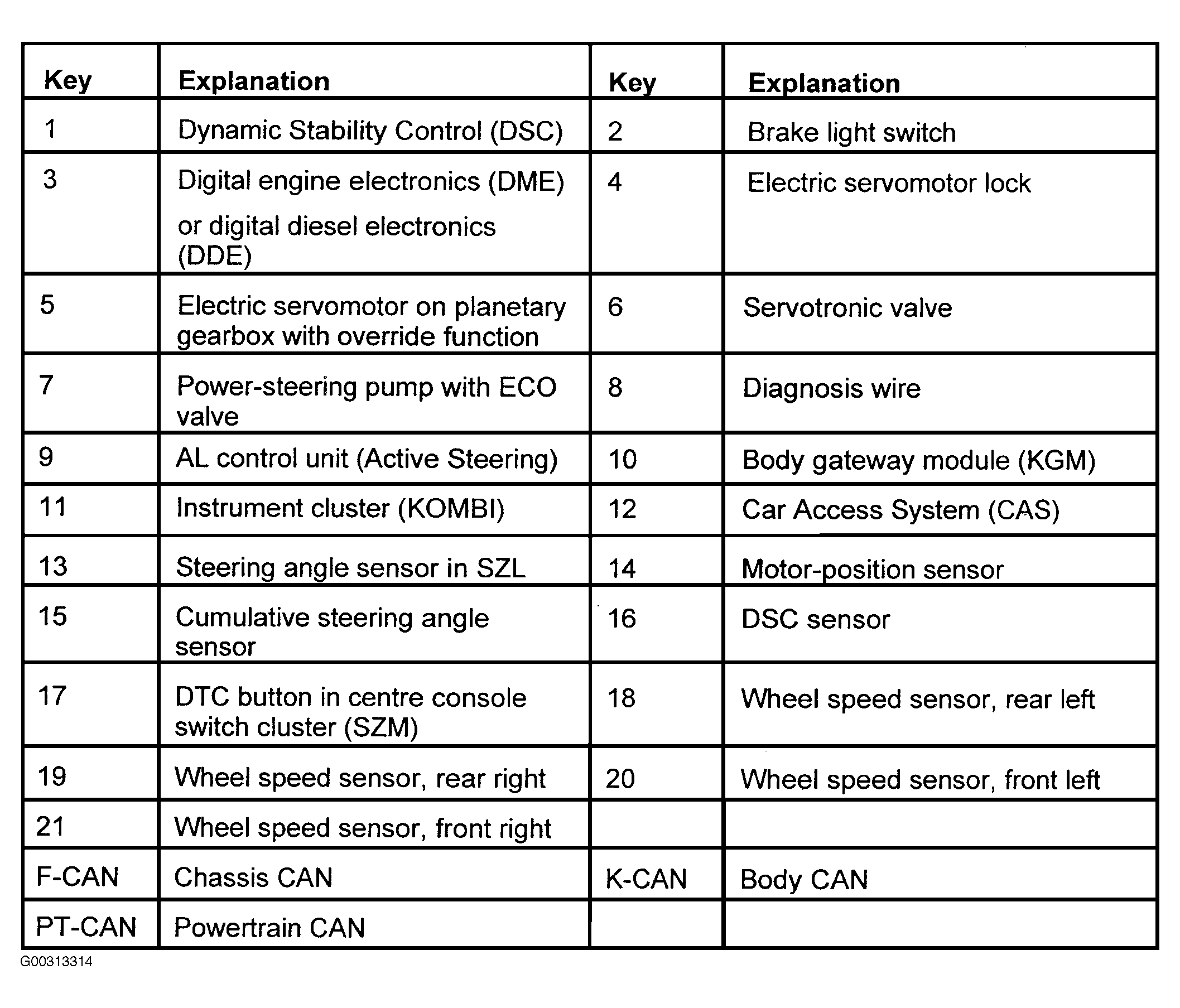

Fig 2: Legend For Active Steering Inputs/Outputs (E60, E61, E63, E64 from 09/2005)
G00313314Courtesy of BMW OF NORTH AMERICA, INC.
