61 6 060 Universal wiper arm puller
WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
UNIVERSAL WIPER ARM PULLER SPECIFICATIONS
| Note: | For removing windscreen wiper arm from drive shaft |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, RR1 |
| Storage location: | B40 |
| SI number: | 1 10 99 (433) |
| Order number: | 61 6 060 |

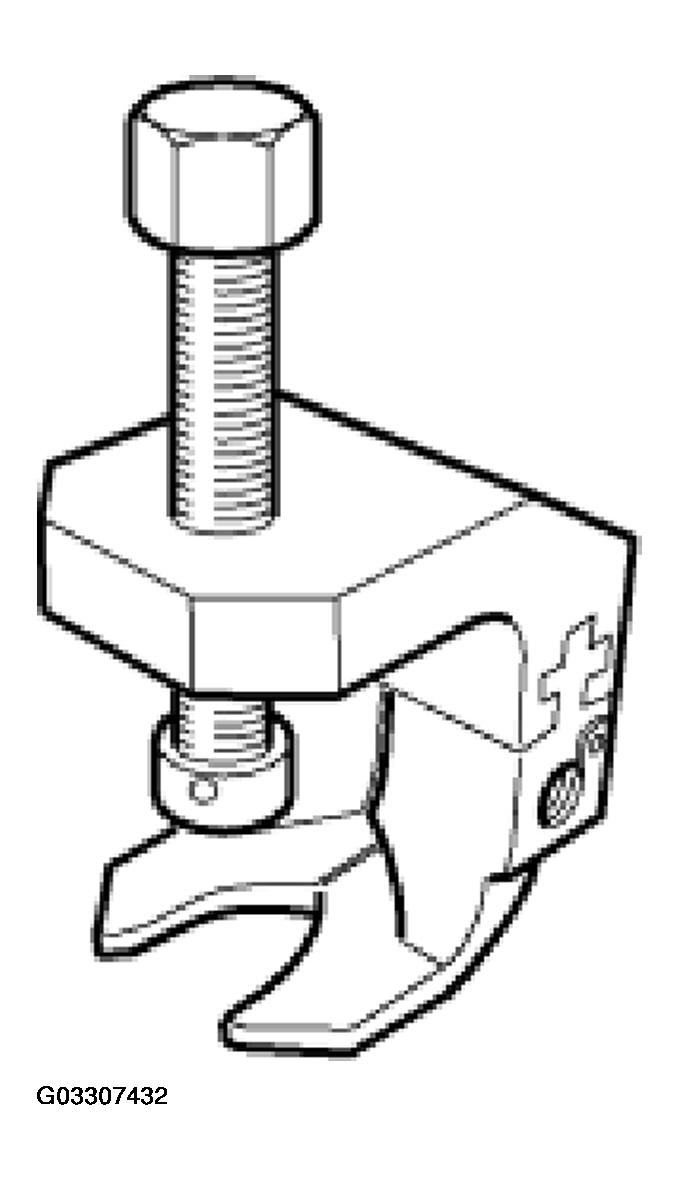

| Universal wiper arm puller | |
| Consisting of: | |
| 1 = 61 6 061 | Basic body |
| 2 = 61 6 062 | Claw, left/right |
| 3 = 61 6 063 | Spindle |
| 4 = 61 6 064 | Thrust piece |
