61 4 380 Measuring box, 105-pin, complete
WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Measuring And Testing Equipment
MEASURING BOX, 105-PIN SPECIFICATIONS
| Note: | For connecting all adapter cables with 61-pin to 105-pin plug connections |
| Series: | E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| Storage location: | G 110, S 205, U 202, U 205 |
| SI number: | 2 04 01 (710) |
| Order number: | 61 4 380 |
| Measuring box, 105-pin, complete | |
| Consisting of: | |

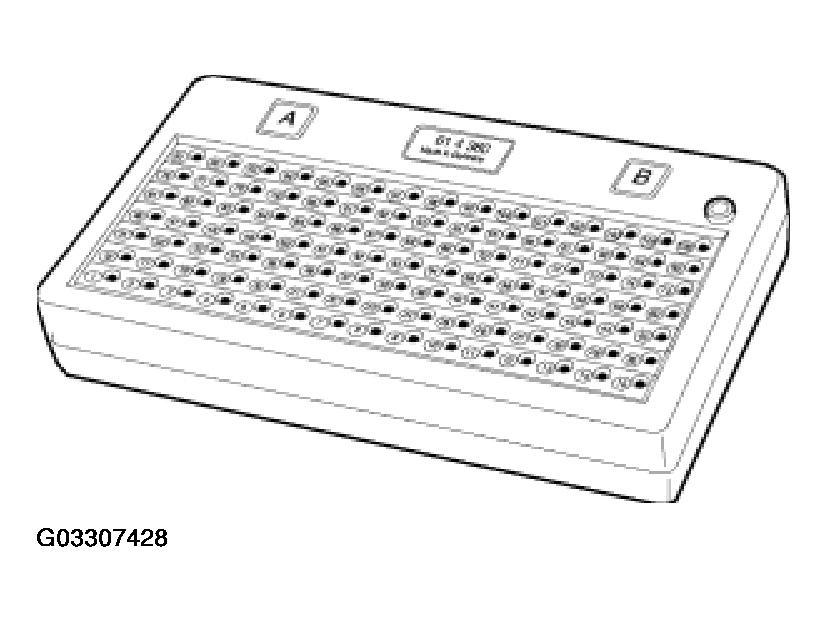

| 1 = 61 4 381 | Measuring box, 105-pin |
|
NOTE:
Without accessories
|
|
| 2 = 61 4 382 | Test lead, black |
|
NOTE:
2 mm system, lead length: 750 mm
|
|
| 3 = 61 4 383 | Test lead, red |
|
NOTE:
2 mm system, lead length: 750 mm
|
|
| 4 = 61 4 384 | Test lead set |
|
NOTE:
2/4 mm system, lead length: 200 mm
|
|
| 5 = 61 4 385 | Earth/ground cable |
|
NOTE:
For shield pick-off, lead length: 1.5 m
|
