61 4 320 Crimping set with pliers
WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Measuring And Testing Equipment
CRIMPING SET WITH PLIERS SPECIFICATIONS
| Note: | For optical fibres and cable repair |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, R50, R53, RR1 |
| SI number: | 1 14 01 (766) |
| Order number: | 61 4 320 |

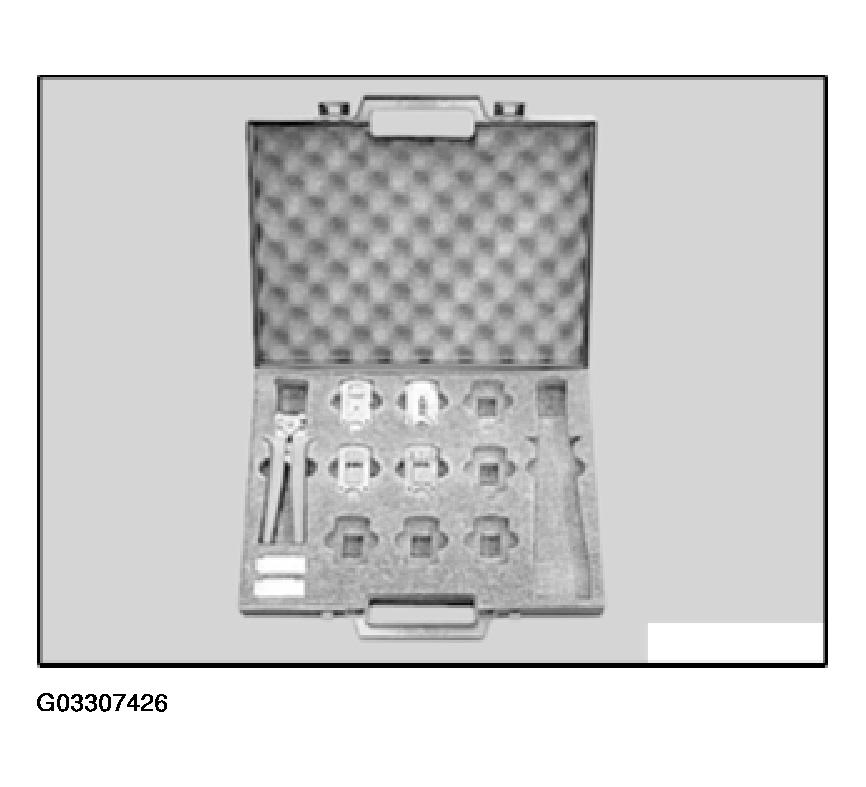

| Crimping set with pliers | |
| Consisting of: | |
| 1 = 61 4 321 | Pliers without crimping head |
| 2 = 61 4 322 | Crimping head |
|
NOTE:
For stripping insulation and cutting fiber optic cable to length
|
|
| 3 = 61 4 323 | Crimping head |
|
NOTE:
For crimping fiber optic cable contacts
|
|
| 4 = 61 4 324 | Crimping head |
|
NOTE:
For crimping MQS contacts
|
|
| 5 = 61 4 325 | Crimping head |
|
NOTE:
For crimping MPQ contacts
|
|
| 6 = 61 4 326 | Substitute blade |
|
NOTE:
For face-cutting fiber optic cables
|
|
| 7 = 61 4 327 | Substitute blade |
|
NOTE:
With tool for replacing blade in cable stripping unit
|
