61 2 070 Cable set
WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Measuring And Testing Equipment
CABLE SET SPECIFICATIONS
| Note: | For performing installation and adjustment work with front seat with electric seat adjustment removed 61 2 071 for activating removed convertible top E85 and R52 |
| Series: | E31, E36, E38, E46, E52, E60, E61, E65, E66, E85, R52, RR1 |
| Storage location: | R 204, R 205, R 206, R 207 |
| SI number: | 2 12 91(450) |
| Order number: | 61 2 070 |

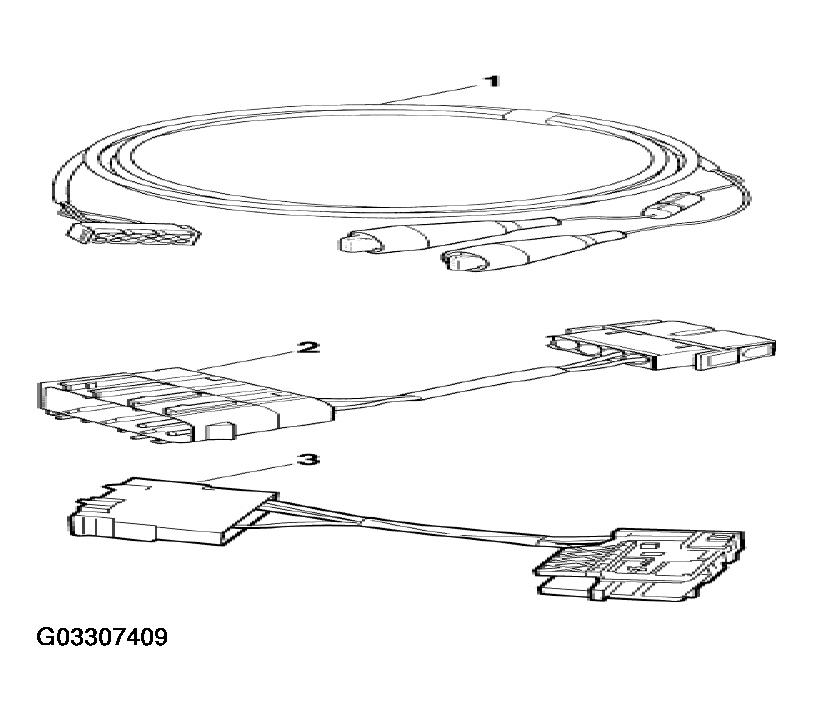

| Cable set | |
| Consisting of: | |
| 1 = 61 2 071 | Power supply cable |
|
NOTE:
Connection between a battery and different adapter cables
|
|
| 2 = 61 2 072 | Adapter cable |
|
NOTE:
Model series: E36
|
|
| 3 = 61 2 073 | Adapter lead |
|
NOTE:
Model series: E38
|
|
| In conjunction with: 61 2 071 | |
| 4 = 61 2 074 | Adapter lead |
|
NOTE:
Model series: E46, E52
|
|
| In conjunction with: 61 2 071 |
