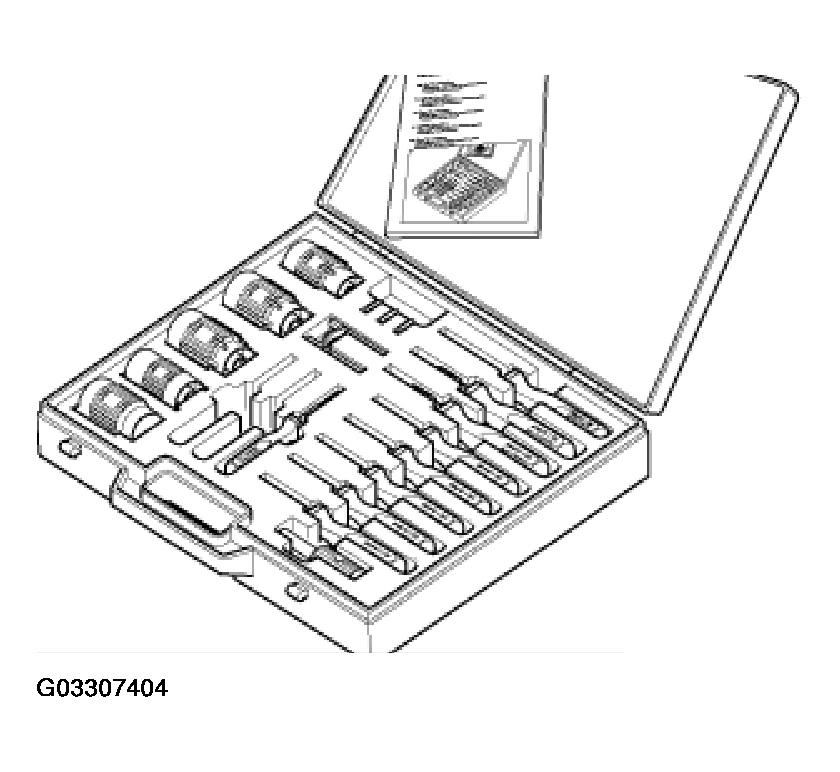

61 1 150 Releasing tool kit
WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
RELEASING TOOL KIT SPECIFICATIONS
| Note: | For circular connector / ejector tool - Contains the kits 61 1 130, 61 1 140 and 61 1 180. Replaced by special tool 61 0 300 from 09/2005. |
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E66, E83, E85, R50, R53, RR1 |
| Storage location: | K 106 |
| Order number: | 61 1 150 |
| Releasing tool kit | |
| Consisting of: | |
| 61 1 151 | Press-out tool |
|
NOTE:
For Power timer contacts / AMP and Bosch Replaced by special tool 61 0 315 from 09/2005.
|
|
| 61 1 152 | Press-out tool |
|
NOTE:
For Micro-Timer contacts. Replaced by special tool 61 0 323 from 09/2005.
|
|
| 61 1 153 | Releasing tool |
|
NOTE:
For retaining tabs of relay holder
|
|
| 61 1 154 | Replacement sleeve dia. 1.5 mm for 61 1 139 |
|
NOTE:
Order number was temporarily assigned for case inlay in 8/95 on delivery of case. Replaced by special tool 61 0 311 from 09/2005.
|
|
| 61 1 155 | Replacement sleeve dia. 3.5 mm for 61 1 133 Replaced by special tool 61 0 306 from 09/2005. |
| 61 1 156 | Replacement sleeve dia. 2.5 mm for 61 1 132
NOTE:
Replaced by special tool 61 0 304 from 09/2005.
|
| 61 1 157 | Replacement sleeve dia. 1.5 mm for 61 1 131
NOTE:
Replaced by special tool 61 0 302 from 09/2005.
|
| 61 1 158 | Case with insert
NOTE:
Note: Replaced by special tool 61 0 329 from 09/2005
|
| 61 1 159 | Operating instructions |
| 61 1 131 | Press-out tool
NOTE:
Replaced by special tool 61 0 301 from 09/2005
|
| 61 1 132 | Press-out tool |
|
NOTE:
For 2.5 mm round contacts. Replaced by special tool 61 0 303 from 09/2005.
|
|
| 61 1 133 | Press-out tool |
|
NOTE:
For 3.5 mm round contacts. Replaced by special tool 61 0 305 from 09/2005.
|
|
| 61 1 134 | Press-out tool |
|
NOTE:
For mini flat spring contacts. Replaced by special tool 61 0 312 from 09/2005.
|
|
| 61 1 135 | Press-out tool |
|
NOTE:
For standard flat spring contacts. Replaced by special tool 61 0 314 from 09/2005
|
|
| 61 1 136 | Press-out tool |
|
NOTE:
For Power-Timer contacts (G & H). Replaced by special tool 61 0 316 from 09/2005.
|
|
| 61 1 137 | Press-out tool |
|
NOTE:
For Timer contacts. Replaced by special tool 61 0 313 from 09/2005.
|
|
| 61 1 138 | Socket wrench |
|
NOTE:
For telltale lamps (instrument cluster)
|
|
| 61 1 139 | Press-out tool |
|
NOTE:
Slotted sleeve for 1.5 mm dia. for Kostal round contacts. Replaced by special tool 61 0 311 from 09/2005.
|
|
| 61 1 141 | Releasing tool |
|
NOTE:
For D 2.5 / ELA, 4-pin, round
|
|
| 61 1 142 | Releasing tool |
|
NOTE:
For D 2.5 / ELA, 7-pin, round
|
|
| 61 1 143 | Releasing tool |
|
NOTE:
For D 2.5 / ELA, 12-pin, round
|
|
| 61 1 144 | Releasing tool |
|
NOTE:
For D 2.5 / ELA, 25-pin, round
|
|
| 61 1 145 | Releasing tool |
|
NOTE:
For D 1 5 / ELA 10-pin round
|
|
|
NOTE:
For D 1.5 / ELA, 10 pin, round
|
|
| 61 1 149 | Replacement blades |
|
NOTE:
For press-out tool 61 1 148
|
|
| 61 1 148 | Press-out tool for SLC. |
|
NOTE:
SLK = Sensor Laminated Contacts. Replaced by special tool 61 0 319 from 09/2005.
|
|
| 61 1 180 | Press-out tool |
|
NOTE:
For load current contacts This individual tool belongs to 61 1 150. Replaced by special tool 61 0 318 from 09/2005.
|
