61 0 300 Releasing tool (complete kit)

WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Measuring And Testing Equipment

Note: Replaces special tool 61 1 150 from 09/2005

SI number: 2 05 05 (217)

Order number: 61 0 300

Releasing tool (complete kit)

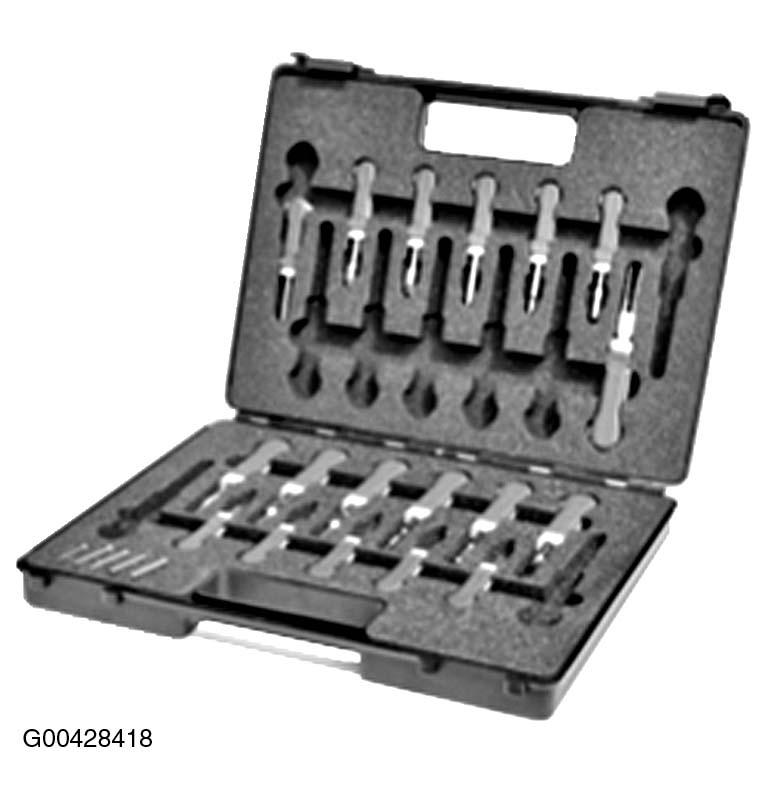

Fig 1: Identifying Releasing Tool Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 61 0 301 Releasing tool for round contacts (dia. 1.5)

Note: Replaces special tool 61 1 131 from 09/2005

2 = 61 0 302 Replacement sleeve D = 1.5

Note: Replaces special tool 61 1 157 from 09/2005

3 = 61 0 303 Releasing tool for round systems with D = 2.5

Note: Replaces special tool 61 1 132 from 09/2005

4 = 61 0 304 Replacement sleeve (D = 2.5)

Note: Replaces special tool 61 1 156 from 09/2005

5 = 61 0 305 Releasing tool for round contacts (D = 3.5)

Note: Replaces special tool 61 1 133 from 09/2005

6 = 61 0 306 Replacement sleeve (D = 3.5) for 61 0 305

Note: Replaces special tool 61 1 155 from 09/2005

7 = 61 0 307 Releasing tool for jack-side round contacts (D = 2.5)

8 = 61 0 308 Replacement sleeve for special tool 61 0 307 (D = 2.5)

9 = 61 0 309 Releasing tool for pin-side round contact (D = 1.5) - Kostal

Note: Replaces special tool 61 1 139 from 09/2005

10 = 61 0 311 Replacement sleeve for special tool 61 0 309

Note: Replaces special tool 61 1 154 from 09/2005

11 = 61 0 312 Releasing tool for flat spring contacts with a snap-in lug (1.6 mm)

Note: Replaces special tool 61 1 134 from 09/2005

12 = 61 0 313 Releasing tool for flat spring contacts with a snap-in pin (1.9 mm)

Note: Replaces special tool 61 1 137 from 09/2005

13 = 61 0 314 Releasing tool for flat spring contact with a snap-in pin (2.7 mm)

Note: Replaces special tool 61 1 135 from 09/2005

14 = 61 0 315 Releasing tool for flat spring contacts with double snap-in pin "Micro-Timer 2"

Note: Replaces special tool 61 1 151 from 09/2005

15 = 61 0 316 Releasing tool for flat spring contacts with double snap-in pin "SPT 4.8" "JPT 2.8"

Note: Replaces special tool 61 1 136 from 09/2005

16 = 61 0 317 Releasing tool for LSK 8

Note: Replaces special tool 61 1 200 from 09/2005

17 = 61 0 318 Releasing tool for "Maxi Power Timer 9.5"

Note: Replaces special tool 61 1 180 from 09/2005

18 = 61 0 319 Releasing tool for sensor laminated contacts ("SLK2.8")

Note: Replaces special tool 61 1 148 from 09/2005

19 = 61 0 321 Releasing tool for sensor laminated contacts with releasing element ("SLK 2.8")

20 = 61 0 322 Releasing tool for mini laminated contact ("MLK 1.2 mm")

21 = 61 0 323 Releasing tool for flat spring contacts with a snap-in pin (MQS)

Note: Replaces special tool 61 1 152 from 09/2005

22 = 61 0 324 Releasing tool for secondary locking

Note: Universal tool for damage-free opening/removal of secondary locking

23 = 61 0 329 Case with foam inlay without tools

Note: Storage system for releasing tools from kit 61 0 300
