61 0 200 Crimping set (basic tool)

WARNING: This page is about a different car, the 2008 BMW 760Li and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Measuring And Testing Equipment

Note: Consisting of case + basic crimping tool

SI number: 02 02 05 (194)

Order number: 61 0 200

Crimping set (basic tool)

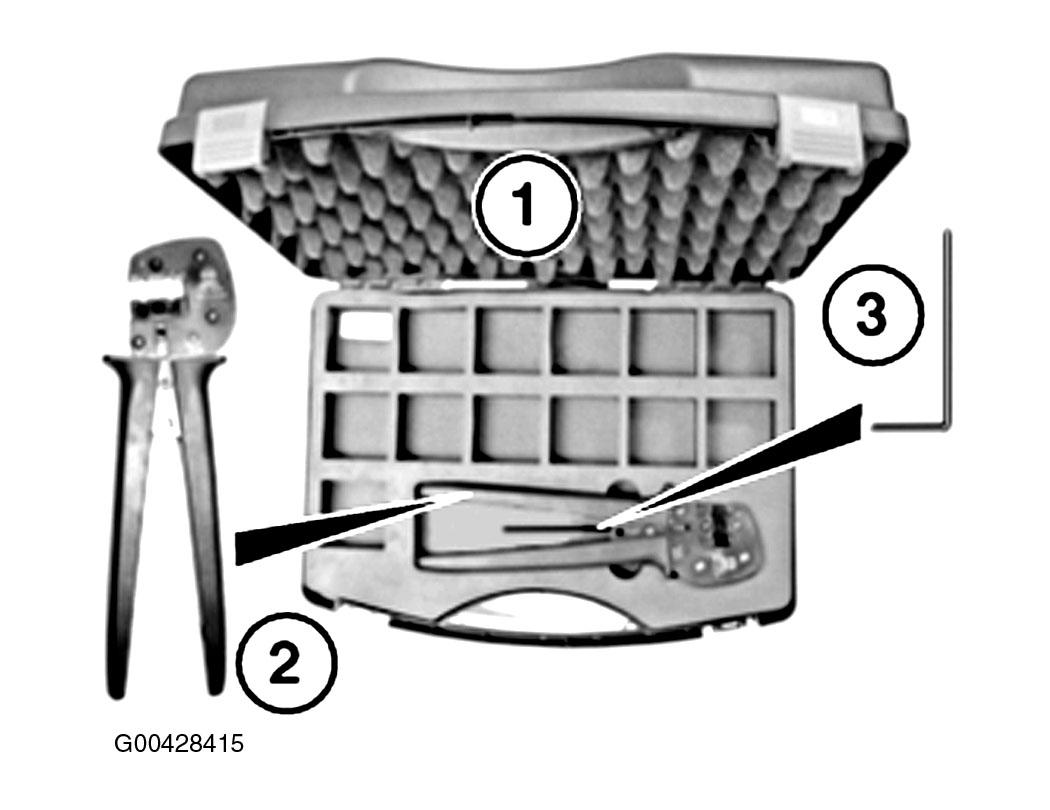

Fig 1: Identifying Crimping Set

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 61 0 201 Plastic case

Note: As storage system for the complete set.

2 = 61 0 202 Crimping tool

Note: Basic tool for different matrices (crimping insert set)

3 = 61 0 203 Allen key

Note: For securing individual matrices in the crimping tool
