36 1 030 Tester
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
TESTER SPECIFICATIONS
| Note: | For measuring vertical and lateral runout of wheels |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| SI number: | 1 11 00 (594) |
| Order number: | 36 1 030 |

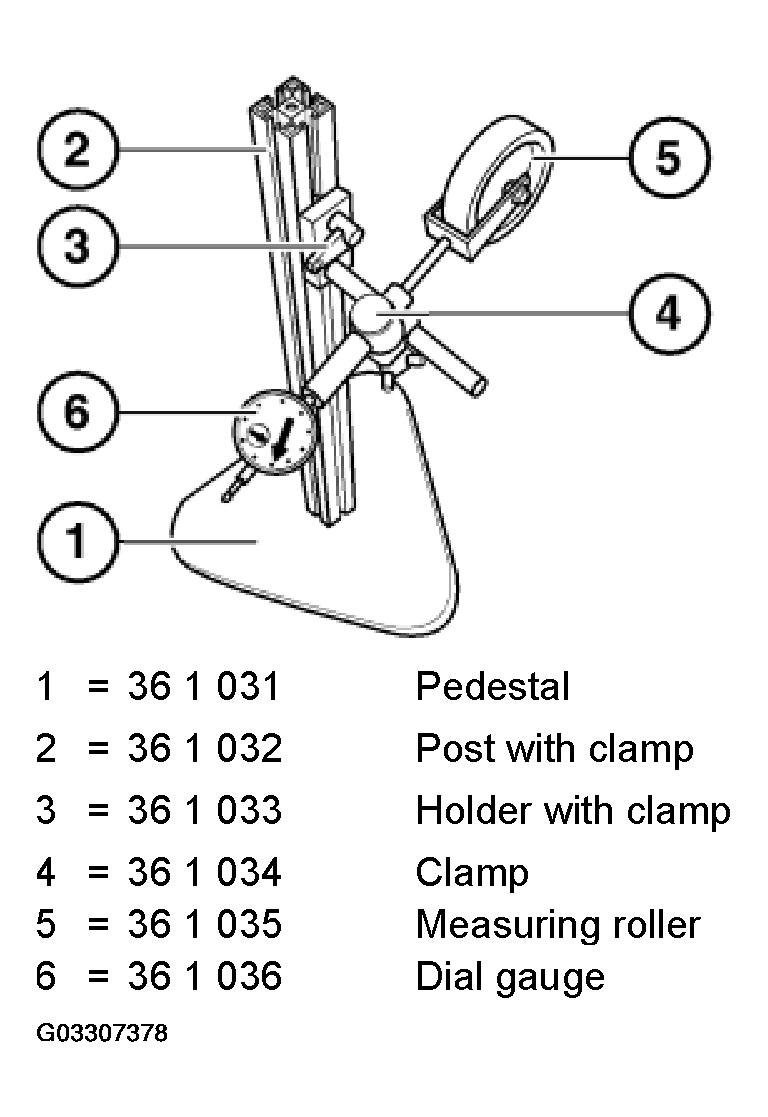

| Tester | |
| Consisting of: | |
| 1 = 36 1 031 | Pedestal |
| 2 = 36 1 032 | Post with clamp |
| 3 = 36 1 033 | Holder with clamp |
| 4 = 36 1 034 | Clamp |
| 5 = 36 1 035 | Measuring roller |
| 6 = 36 1 036 | Dial gauge |
