34 1 130 Installation sleeves
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
INSTALLATION SLEEVES SPECIFICATIONS
| Note: | For mounting dust caps on brake piston |
| Series: | E39, E52, E53, E60, E61, E63, E64, E65, E66, E67 |
| Storage location: | A35 |
| SI number: | 1 01 97 (173) |
| Order number: | 34 1 130 |

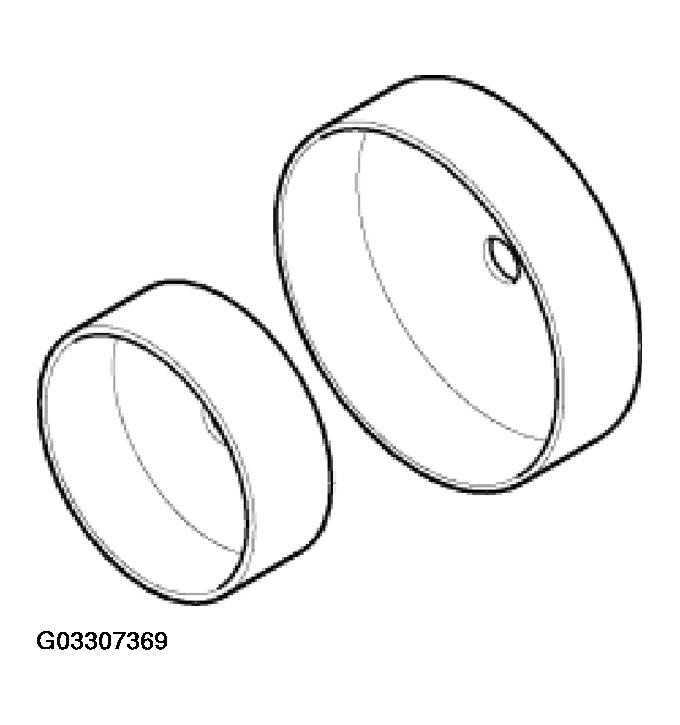

| Installation sleeves | |
| Consisting of: | |
| 34 1 132 | Press-in sleeve |
|
NOTE:
Diameter 58 mm for rear dust cap - Series: E52, E53, E60, E65, E66, E67
|
|
| 34 1 133 | Sleeve |
|
NOTE:
For installing dust sleeve on floating caliper of front axle - Series: E53, E65, E60, E66, E67
|
