32 4 000 Fixture
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
FIXTURE SPECIFICATIONS
| Note: | For checking pump pressure in power steering system |
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91 |
| Order number: | 32 4 000 |
| Fixture | |

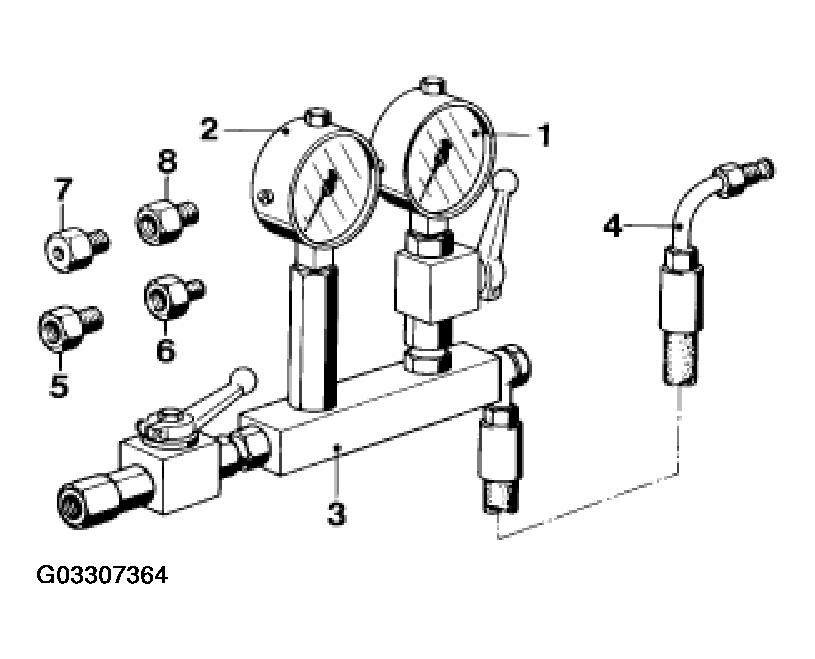

| Consisting of: | |
| 1 = 32 4 001 | Pressure gauge 16 bar |
| 2 = 32 4 002 | Pressure gauge 160 bar |
| 3 = 32 4 003 | Test fixture without pressure gauge |
| 4 = 32 4 004 | Line |
| 5 = 32 4 005 | Connecting piece |
| Note: For screwing into hydraulic pump / model series: E23, E46, E52, E53, E64, E65, E66, E85 | |
| 6 = 32 4 006 | Connecting piece |
| Note: For screwing into test fixture 32 4 003 / model series: E23, E46, E52, E53, E64, E65, E66, E85 | |
| 7 = 32 4 007 | Connecting piece M18 x 1.5 |
| Note: For screwing into pressure regulator / model series: E32, E34 | |
| 8 = 32 4 008 | Connecting piece M14 x 1.5 |
| Note: For screwing into test fixture / model series: E32, E34 | |
| 9 = 32 4 009 | Ball valve |
| 11 = 32 4 011 | Adapter M14 x 1.5 |
| 12 = 32 4 012 | Adapter M16 x 1.5 |
