26 1 300 Inclination angle measuring device

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
INCLINATION ANGLE MEASURING DEVICE SPECIFICATIONS

Note: For determining bending angle of propeller shaft
Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, RR1
Order number: 26 1 300
Inclination angle measuring device

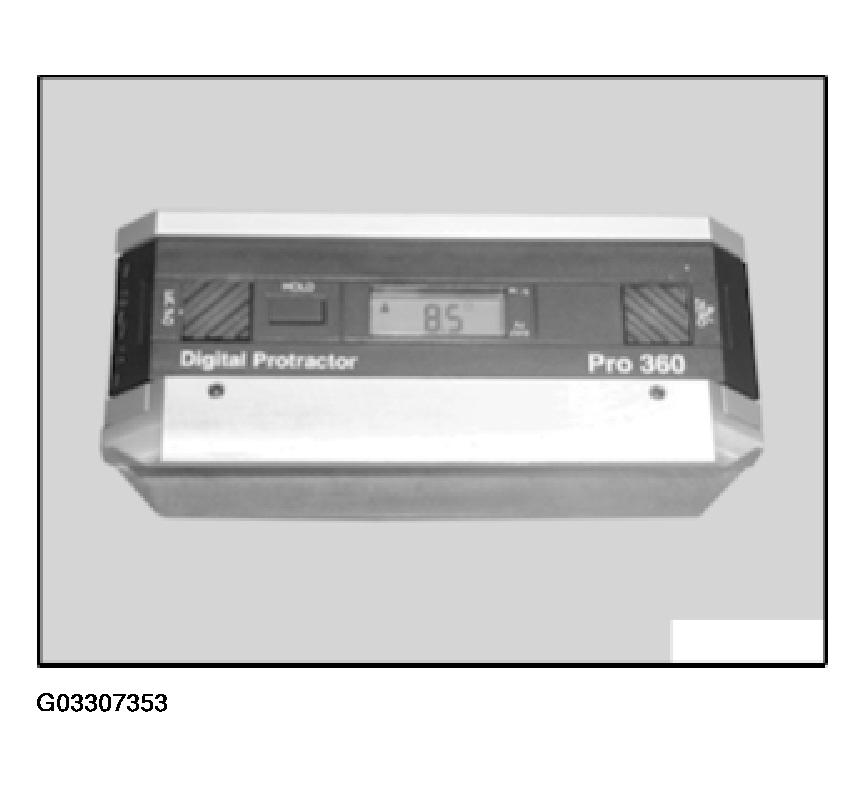

Fig 1: Identifying Inclination Angle Measuring Device
G03307353Courtesy of BMW OF NORTH AMERICA, INC.
