17 2 010 Set of adapters
WARNING: This page is about a different car, the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
SET OF ADAPTERS SPECIFICATIONS
| Note: | For oil dispensers for flushing oil coolers of automatic transmissions |
| Transmission: | A4S 310R, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 440Z, A5S560Z, GA6 HP19Z, GA6 HP26Z, GA6 HP32Z |
| SI number: | 1 12 96 (103) |
| Order number: | 17 2 010 |

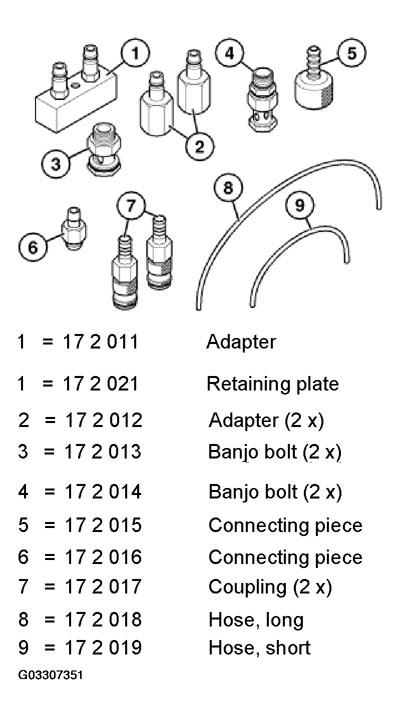

| Set of adapters | |
| Consisting of: | |
| 1 = 17 2 011 | Adapter |
|
NOTE:
For connecting oil cooler lines to oil dispensing unit - transmission: A5S 310Z, A5S 560Z, A5S 325Z
|
|
| In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019 | |
| 1 = 17 2 021 | Retaining plate |
|
NOTE:
For Adapter 17 2 011 - transmission: A5S 325Z
|
|
| 2 = 17 2 012 | Adapter (2 x) |
|
NOTE:
For connecting oil cooler lines to oil dispensing unit - transmission: A4S 310R
|
|
| In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 01, 17 2 018, 17 2 019 | |
| 3 = 17 2 013 | Banjo bolt (2 x) |
|
NOTE:
M18x1.5 thread with nut and seal for connecting oil cooler lines to oil dispensing unit - transmission: A5S 440Z
|
|
| In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019 | |
| 4 = 17 2 014 | Banjo bolt (2 x) |
|
NOTE:
M16x1.5 thread with nut, seal and threaded piece for connecting oil cooler lines to oil dispensing unit transmission: A5S 300J
|
|
| In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019 | |
| 5 = 17 2 015 | Connecting piece |
|
NOTE:
For Tecalemit oil dispensing unit
|
|
| 6 = 17 2 016 | Connecting piece |
|
NOTE:
For Horn oil dispensing unit
|
|
| 7 = 17 2 017 | Coupling (2 x) |
| 8 = 17 2 018 | Hose, long |
| 9 = 17 2 019 | Hose, short |
