17 0 130 Set of adapters
WARNING: This page is about a different car, the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
SET OF ADAPTERS SPECIFICATIONS
| In conjunction with: | 17 0 101, 17 0 102 |
| Note: | For connecting adapters from 17 0 000 to pump 17 0 101 and hose 17 0 102. |
| SI number: | 01 07 02 (884) |
| Order number: | 17 0 130 |

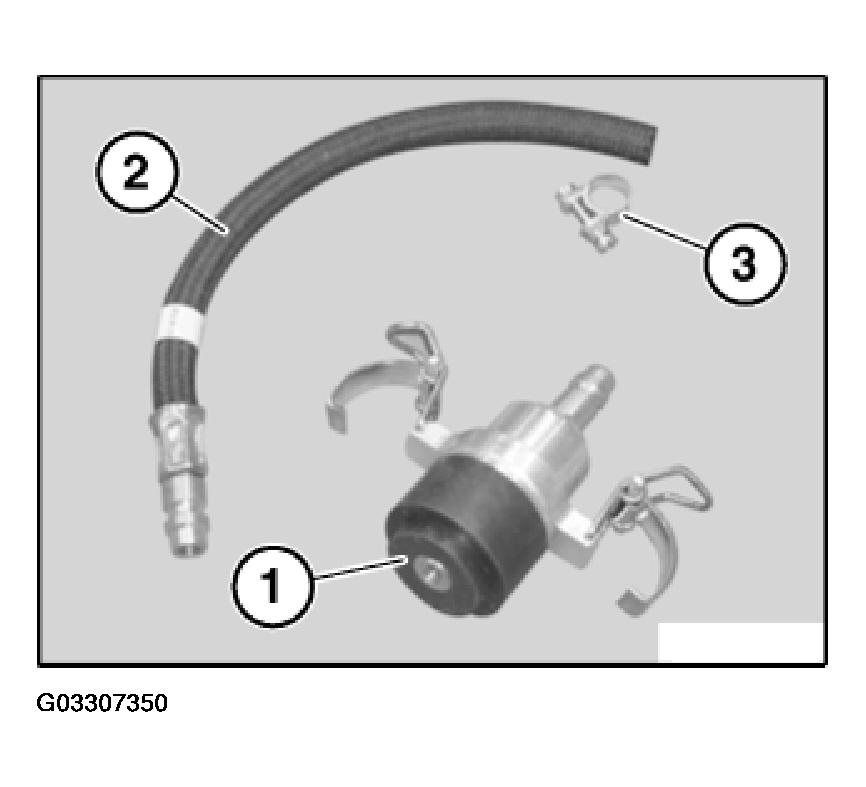

| Set of adapters | |
| Consisting of: | |
| 1 = 17 0 131 | Adapter |
|
NOTE:
For connecting pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000
|
|
| 2 = 17 0 132 | Hose with coupling connection |
|
NOTE:
For connecting pump 17 0 101 to adapter 17 0 007
|
|
| 3 = 17 0 133 | Hose clamp |
|
NOTE:
For hose 17 0 132
|
