17 0 000 Tester
WARNING: This page is about a different car, the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
TESTER SPECIFICATIONS
| Note: | For checking cooling system for leaks and function of pressure relief valve in radiator cap. Replaced by 17 0 100 |
| Storage location: | A43, C17 |
| Order number: | 17 0 000 |

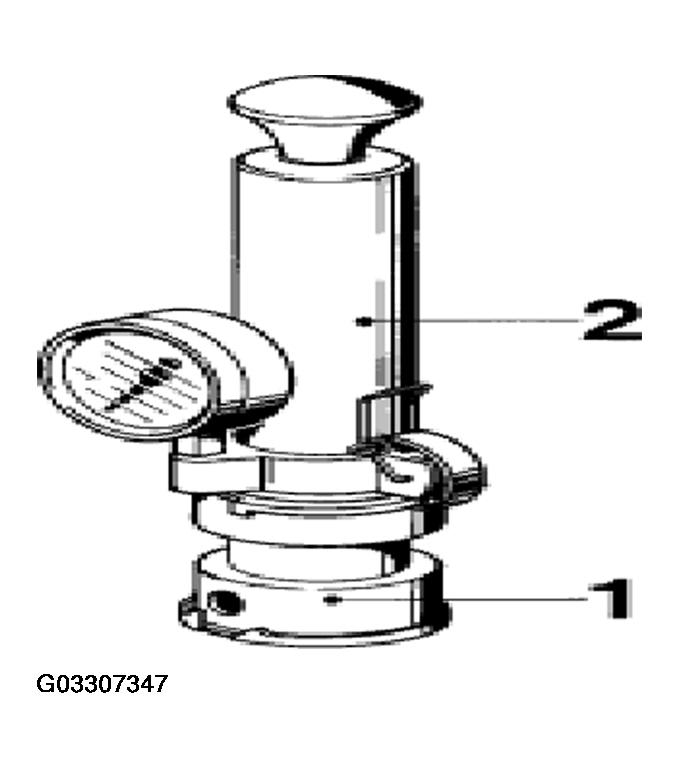

| Tester | |
| Consisting of: | |
| 1 = 17 0 001 | Adapter |
|
NOTE:
For checking pressure relief valve in radiator cap / model series: all, except E28
|
|
| 2 = 17 0 002 | Tester without adapter |
|
NOTE:
Pressure range 0-2.5 bar / model series: all, except E28
|
|
| 3 = 17 0 003 | Screw neck |
|
NOTE:
For screw-on radiator caps (normal thread)/ model series: E28, E30, E31, E32 Engine: all, except M51
|
|
| 4 = 17 0 004 | Adapter |
|
NOTE:
For screw-on radiator caps (normal thread) / model series: E28, E30, E32 / Engine: M51
|
|
| 5 = 17 0 005 | Screw neck |
|
NOTE:
For screw-on radiator caps (buttress thread) / model series: E31, E32, E34, E36, E38, E39
|
|
| 7 = 17 0 007 | Adapter |
|
NOTE:
For checking expansion tank cap / model series: E31, E32, E34, E36, E38, E39
|
|
| 8 = 17 0 008 | Pressure hose |
| 9 = 17 0 009 | Adapter for radiator expansion tank |
|
NOTE:
Model series: E36 / Model: M3 US Engine W10
|
