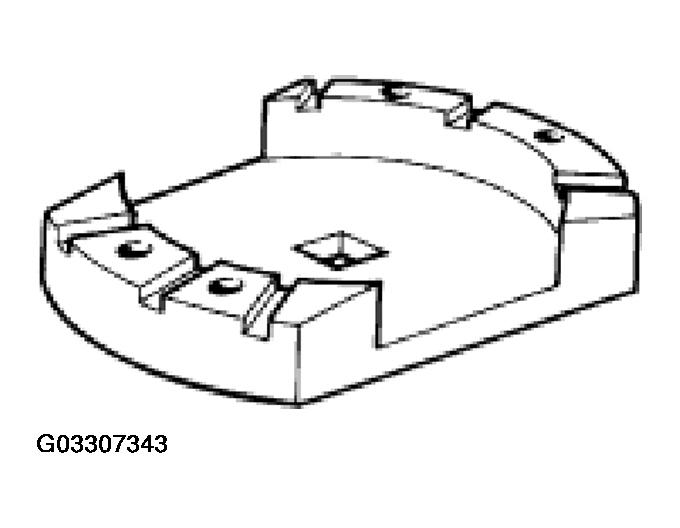

16 1 020 Pin wrench
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
PIN WRENCH SPECIFICATIONS
| Note: | For removing and installing fuel level sensor in fuel tank |
| Series: | E31, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1 |
| Storage location: | C21 |
| SI number: | 1 04 99 (425) |
| Order number: | 16 1 020 |
| Pin wrench | |
| Consisting of: | |
| 1 = 16 1 021 | Basic wrench |
| 2 = 16 1 022 | Attachment (2 x) |
| Note: Model series: E46, E38, E39, R50, R53 |
