13 6 050 Set of adapters for BMW DIS
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
SET OF ADAPTERS FOR BMW DIS SPECIFICATIONS
| Note: | For measuring oil and fuel pressures |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| Storage location: | A16, B16 |
| SI number: | 1 12 94 (859) |
| Order number: | 13 6 050 |

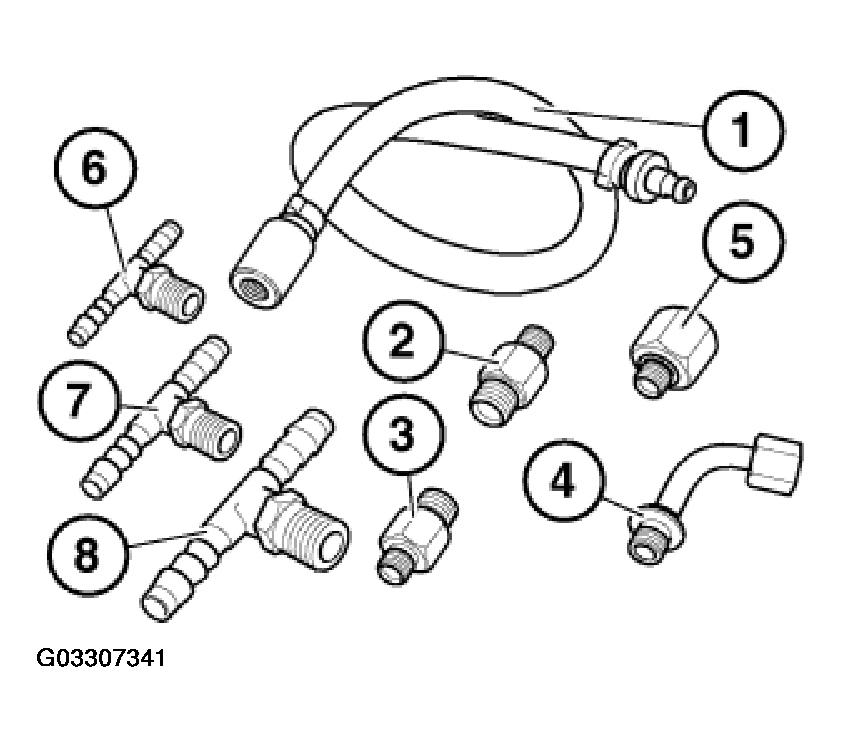

| Set of adapters for BMW DIS | |
| Consisting of: | |
| 1 = 13 6 051 | Connecting hose |
| Note: For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS | |
| 2 = 13 6 052 | Reducer |
| Note: For pipe elbows 24 0 023, 24 0 024, 24 0 140 | |
| In conjunction with: 13 6 051 | |
| 3 = 13 6 053 | Reducer for adapter 16 1 300 |
| In conjunction with: 13 6 051 | |
| 4 = 13 6 054 | Pipe elbow |
| In conjunction with: 13 6 051, 11 4 050 | |
| 5 = 13 6 055 | Reducer for T-pieces 13 6 056 and 13 6 057 |
| In conjunction with: 13 6 051 | |
| 6 = 13 6 056 | T-piece for 6 mm dia. line |
| 7 = 13 6 057 | T-piece for 8 mm dia. line |
