13 5 270 Adapter hose with coupler plug
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
ADAPTER HOSE WITH COUPLER PLUG SPECIFICATIONS
| In conjunction with: | 13 3 063 |
| Note: | For DIS pressure sensor or pressure gauge 13 3 061 for measuring fuel feed pressure |
| Engine: | M47, M47TU, M57TU, M62, N73, S50B32 |
| Storage location: | A16, B16, C16 |
| SI number: | 1 18 96 (163) |
| Order number: | 13 5 270 |

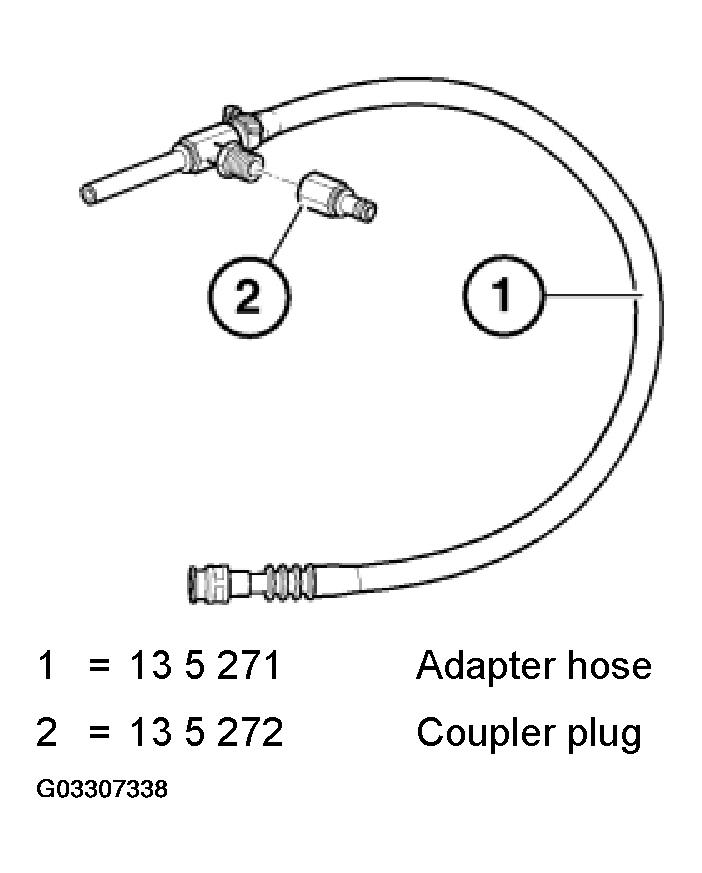

| Adapter hose with coupler plug | |
| Consisting of: | |
| 1 = 13 5 271 | Adapter hose |
| 2 = 13 5 272 | Coupler plug |
|
NOTE:
For connecting DIS pressure sensor
|
