13 5 250 Extractor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
EXTRACTOR SPECIFICATIONS
| Note: | For removing injection nozzles or injectors from cylinder head |
| Engine: | M47, M47TU, M57, M57TU, M67, N73, W10, W11 |
| Storage location: | B38, C38 |
| SI number: | 1 06 98 (306) |
| Order number: | 13 5 250 |

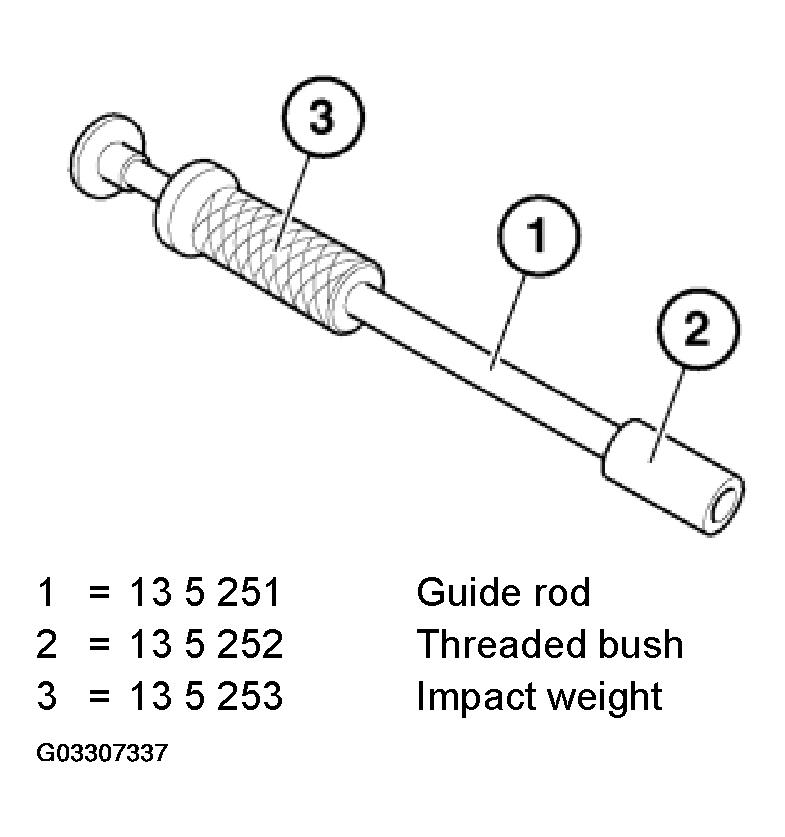

| Extractor | |
| Consisting of: | |
| 1 = 13 5 251 | Guide rod |
| 2 = 13 5 252 | Threaded bush |
| 3 = 13 5 253 | Impact weight |
