13 3 060 Fixture
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
FIXTURE SPECIFICATIONS
| Note: | For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| Order number: | 13 3 060 |

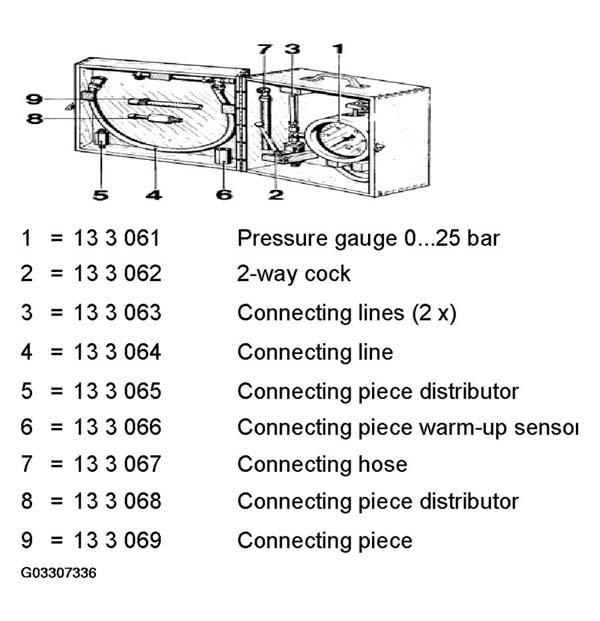

| Fixture | |
| Consisting of: | |
| 1 = 13 3 061 | Pressure gauge 0-25 bar |
| 2 = 13 3 062 | 2-way cock |
|
NOTE:
Engine: All, except S50, S54, N73
|
|
| 3 = 13 3 063 | Connecting lines (2 x) |
|
NOTE:
For fuel and oil pressure testing
|
|
| 4 = 13 3 064 | Connecting line |
|
NOTE:
Mit T-piece for L-Jetronic: All except N73
|
|
| 5 = 13 3 065 | Connecting piece distributor |
|
NOTE:
All except N73
|
|
| 6 = 13 3 066 | Connecting piece warm-up sensor |
|
NOTE:
All except N73
|
|
| 7 = 13 3 067 | Connecting hose |
|
NOTE:
For checking fuel pump delivery: All except N73
|
|
| In conjunction with: 13 3 020 | |
| 8 = 13 3 068 | Connecting piece distributor |
|
NOTE:
All except N73
|
|
| In conjunction with: BMW SERVICE TESTER | |
| 9 = 13 3 069 | Connecting piece |
|
NOTE:
For warm-up sensor with hose all except N73
|
|
| In conjunction with: BMW SERVICE TESTER |
