12 7 110 Socket wrench socket WAF 24

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Mechanical Tools

SOCKET WRENCH SOCKET WAF 24 SPECIFICATIONS

Note: For removing and installing pulley on alternator
Engine: M10, M21, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M57, M57TU, M60, M62, M67, M70, M73, N46, N62, N73, S14, S50B30, S50B32
Storage location: B21
SI number: 1 12 93(701)
Order number: 12 7 110
  Socket wrench socket WAF 24

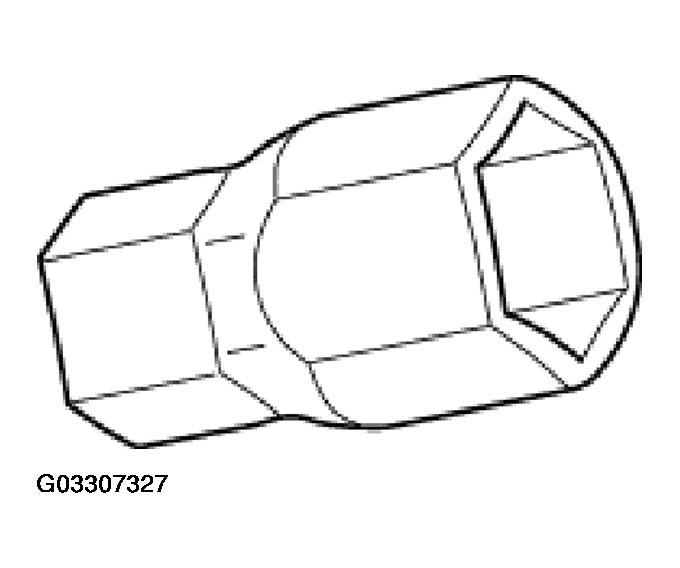

Fig 1: Identifying Socket Wrench Socket WAF 24
G03307327Courtesy of BMW OF NORTH AMERICA, INC.
