12 1 300 Adapter set for 134-pin module plug
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
ADAPTER SET FOR 134-PIN MODULE PLUG SPECIFICATIONS
| In conjunction with: 61 1 459 | |
| Note: | For diagnosis and troubleshooting on DME and transmission control - from model year 98 |
| Engine: | M54, M56, M62, M73, N40, N42, N46, N62, N73 |
| Storage location: | N 201, N 202, N 203, N 204 |
| SI number: | 2 04 97(248) |
| Order number: | 12 1 300 |

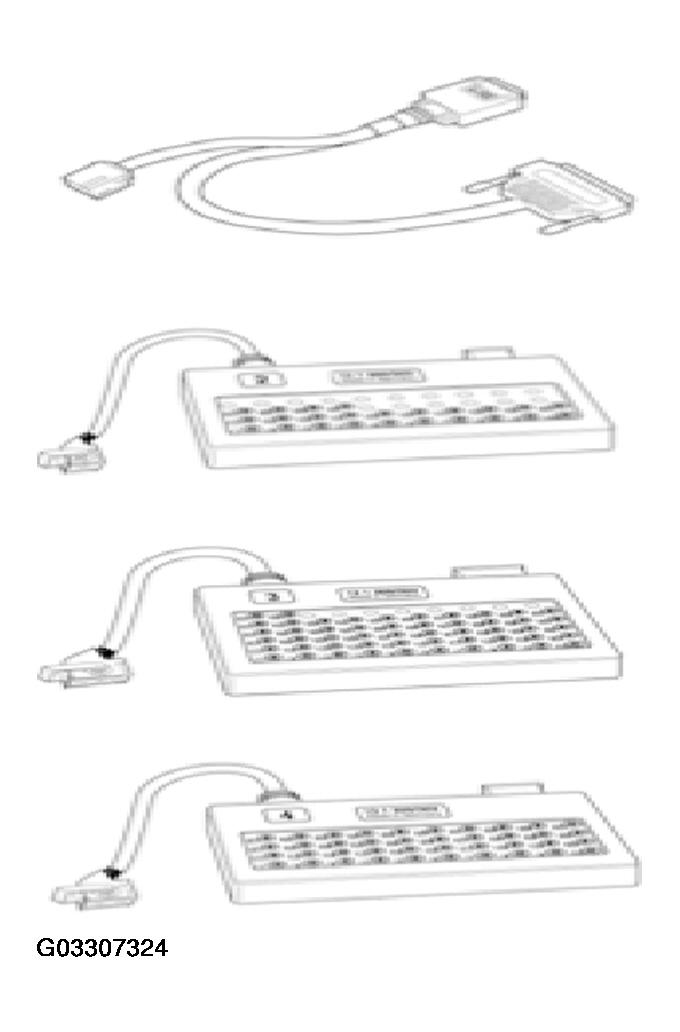

| Adapter set for 134-pin module plug | |
| Consisting of: | |
| 12 1 301 | Adapter lead 9-pin |
| 12 1 302 | Measurement module 24-pin |
| 12 1 303 | Measurement module 40-pin |
| 12 1 304 | Measurement module 52-pin |
|
NOTE:
Supplied from 08/2004 in conjunction with 12 1 305 (zero-coded cover cap for new SGM control unit in E6x)
|
