12 1 170 Spark plug tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Mechanical Tools

SPARK PLUG TOOL SPECIFICATIONS

In conjunction with:	12 1 200
Note:	For releasing spark plugs as well as for tightening to torque limit
Engine:	M40, M42, M43, M43TU, M44, M50, M52, M60, M62, M70, M73, N40, N42, N46, N73, S14, S38, S50B30, S50B32, W10, W11
Storage location:	B13
Order number:	12 1 170
	Spark plug tool
Consisting of:
1 = 12 1 171	Spark plug key WAF 16 mm
	NOTE: S50, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N40, N42, N73
	In conjunction with: 12 1 172 (S50), 12 1 200 (M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N73)
2 = 12 1 172	Torque limiter 23 N.m +/- 3 N.m
	NOTE: S14, S38, S50
	In conjunction with: 12 1 171 (S50), 12 1 160 (S14, S38)

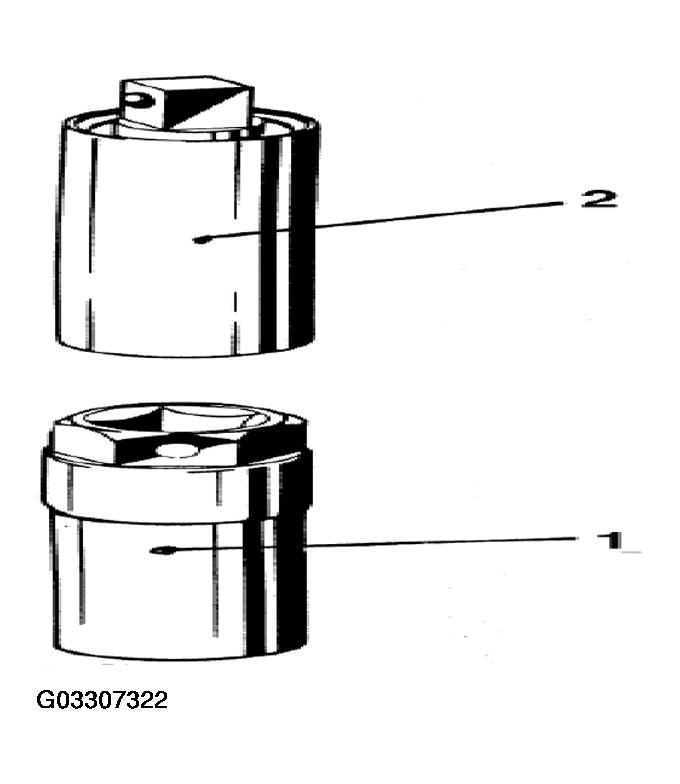

Fig 1: Identifying Spark Plug Tool

Courtesy of BMW OF NORTH AMERICA, INC.
