11 9 460 Gauge
WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
GAUGE SPECIFICATIONS
| Note: | For locating camshaft in TDC position |
| Engine: | N62, N62TU, N73 |
| Storage location: | B45 |
| SI number: | 1 14 01 (766) |
| Order number: | 11 9 460 |

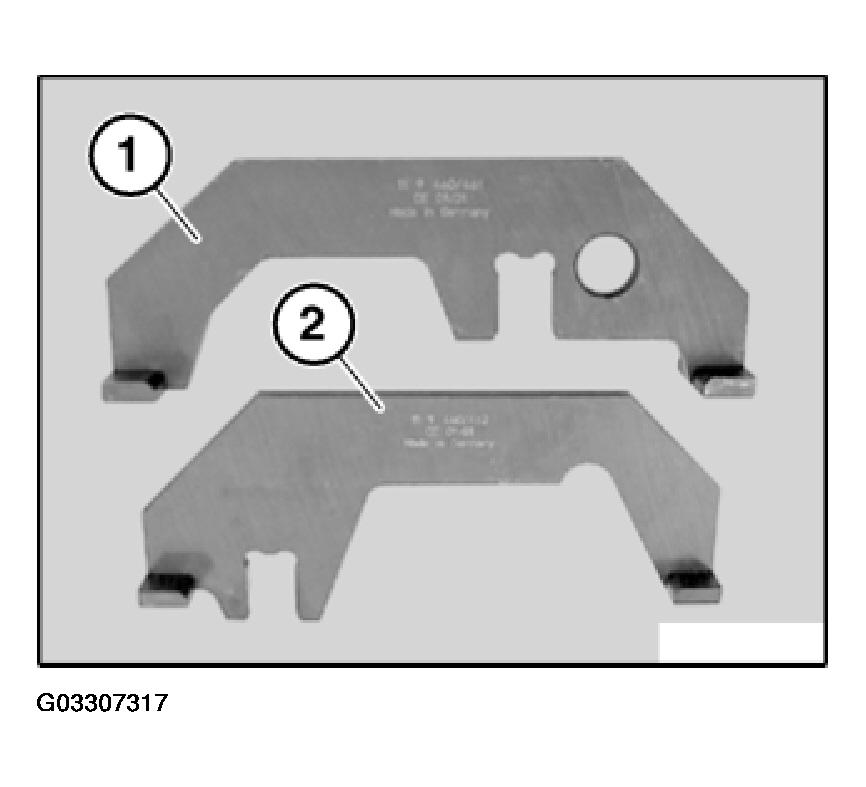

| Gauge | |
| Consisting of: | |
| 1 = 11 9 461 | Gauge, inlet camshaft |
| 2 = 11 9 462 | Gauge, exhaust camshaft |
| 3 = 11 9 463 | Holder with screw |
