11 9 450 Counter holder w/ socket & pointer
WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
COUNTER HOLDER W/ SOCKET SPECIFICATIONS
| Note: | For gripping crankshaft when releasing/tightening central bolt |
| Engine: | N62, N62TU, N73 |
| Storage location: | A45, C42 |
| SI number: | 1 14 01 (766) |
| Order number: | 11 9 450 |

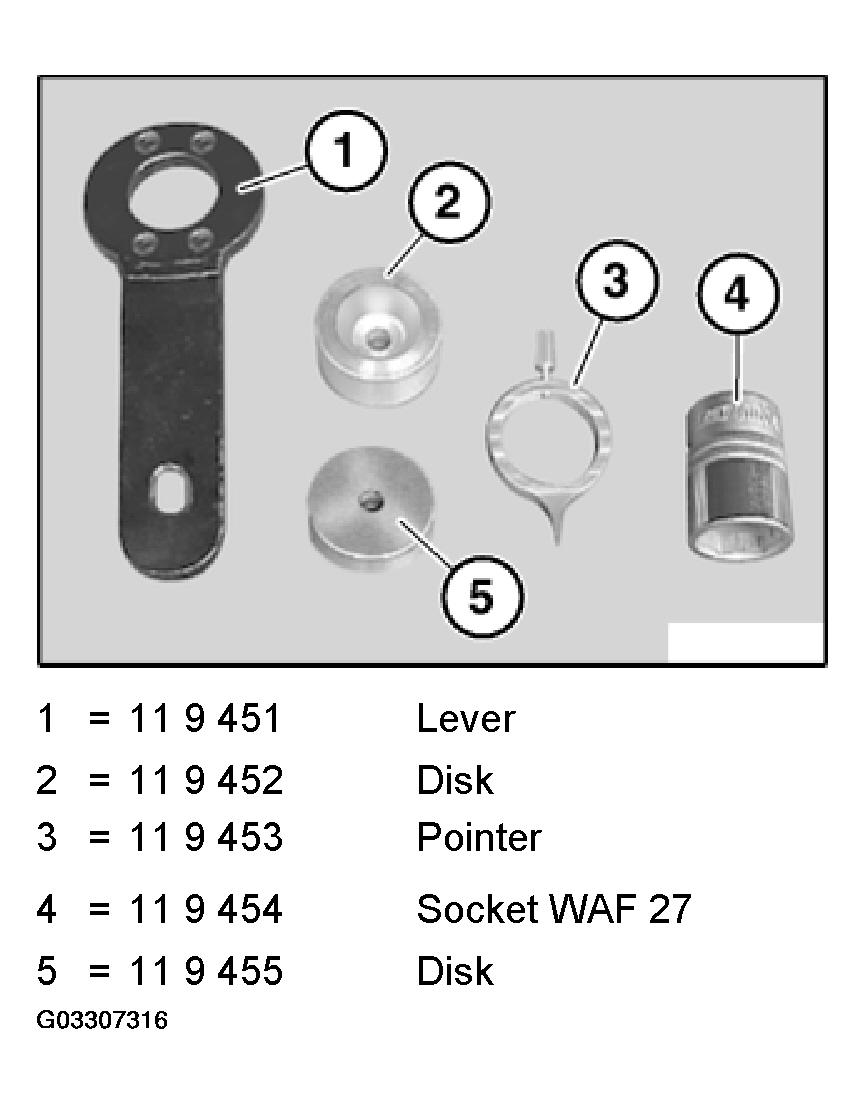

| Counter holder w/ socket & pointer | |
| Consisting of: | |
| 1 = 11 9 451 | Lever |
| 2 = 11 9 452 | Disk |
|
NOTE:
Height 22.5 mm with hexagon screw
|
|
| 3 = 11 9 453 | Pointer |
| 4 = 11 9 454 | Socket WAF 27 |
| 5 = 11 9 455 | Disk |
|
NOTE:
Height 10 mm with hexagon screw
|
