11 9 000 Cylinder head expander tool
WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
CYLINDER HEAD EXPANDER TOOL SPECIFICATIONS
| In conjunction with: | Assembly stand 00 1 450 |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17 |
| Storage location: | Single |
| SI number: | 1 03 02 (833) |
| Order number: | 11 9 000 |

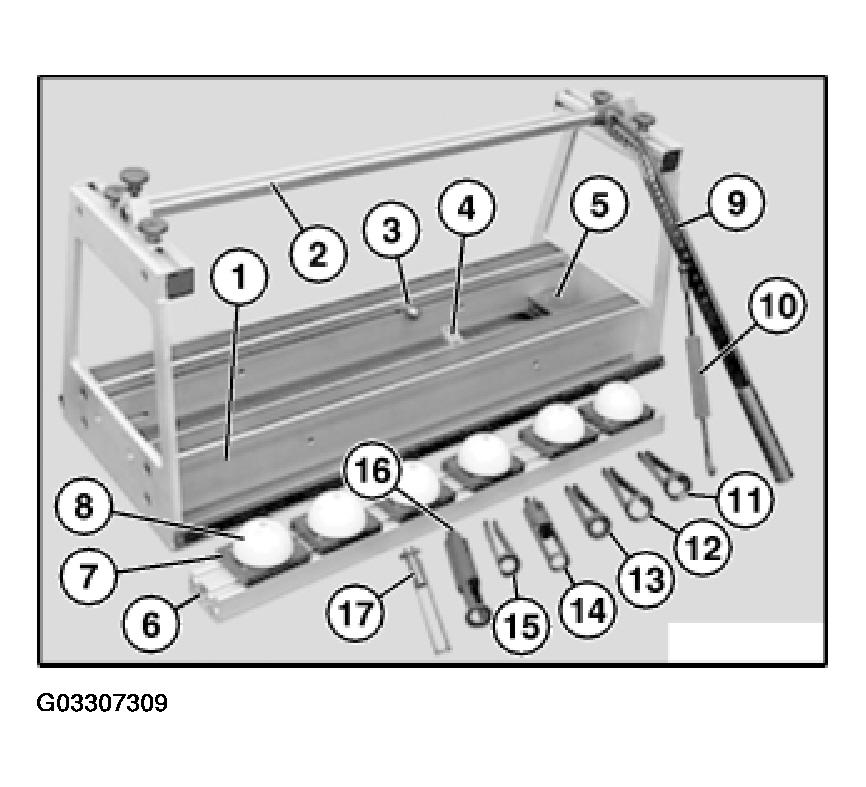

| Cylinder head expander tool | |
| Consisting of: | |
| 1 = 11 9 001 | Fixture |
| 2 = 11 9 002 | Rod |
| 3 = 11 9 003 | Sliding block with M10 thread |
| 4 = 11 9 004 | Tab |
| 5 = 11 9 005 | Quick tensioner |
| 6 = 11 9 006 | Aluminium profile insert |
| 7 = 11 9 007 | Slide |
| 8 = 11 9 008 | Profile plastic part |
| 9 = 11 9 009 | Lever |
| 10 = 11 9 011 | Hook |
| 11 = 11 9 012 | Valve spring cage |
|
NOTE:
Engine M41, M51, S50
|
|
| 12 = 11 9 013 | Valve spring cage |
|
NOTE:
Engine M43, M73
|
|
| 13 = 11 9 014 | Valve spring cage |
|
NOTE:
Engine M44, M52, M54, M56, M62, S52, S54, S62
|
|
| 14 = 11 9 015 | Valve spring cage |
|
NOTE:
Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73
|
|
| 15 = 11 9 016 | Valve spring cage |
|
NOTE:
Engine M21, M40
|
|
| 16 = 11 8 421 | Valve spring cage |
|
NOTE:
Engine: W10, W11, W17
|
|
| 18 = 11 9 017 | Valve spring cage |
|
NOTE:
Engine N52
|
