11 0 000 Engine lifter for removing and installing engines

WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Mechanical Tools

ENGINE LIFTER SPECIFICATIONS

Engine: M10, M47T2, M47TU, M52, M52TU, M54, M56, M60, M62, M67, M70, M73, N52, N62, N73, S14, S54, S62, W10, W11
SI number: 1 13 94 (888)
Order number: 11 0 000
  Engine lifter for removing and installing engines
Consisting of:
1 = 11 0 001 Lifting beam
2 = 11 0 002 Chain, long
3 = 11 0 003 Chain, short
4 = 11 0 009 Shackle (2 x)

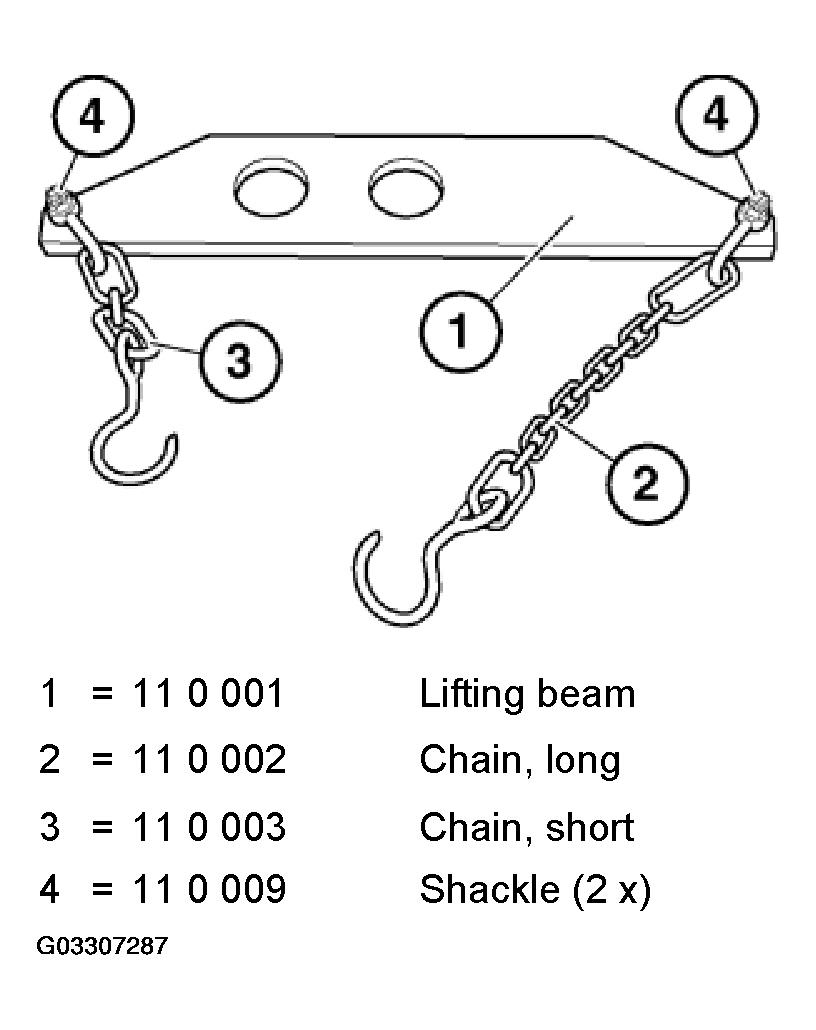

Fig 1: Identifying Engine Lifter
G03307287Courtesy of BMW OF NORTH AMERICA, INC.
