84 50 050 Removing And Installing/Replacing Basic Antenna
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear left or right head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
Remove complete air exhaust louver in storage shelf. Refer to 63 25 000 REMOVING AND INSTALLING/REPLACING ADDITIONAL STOP LIGHT .

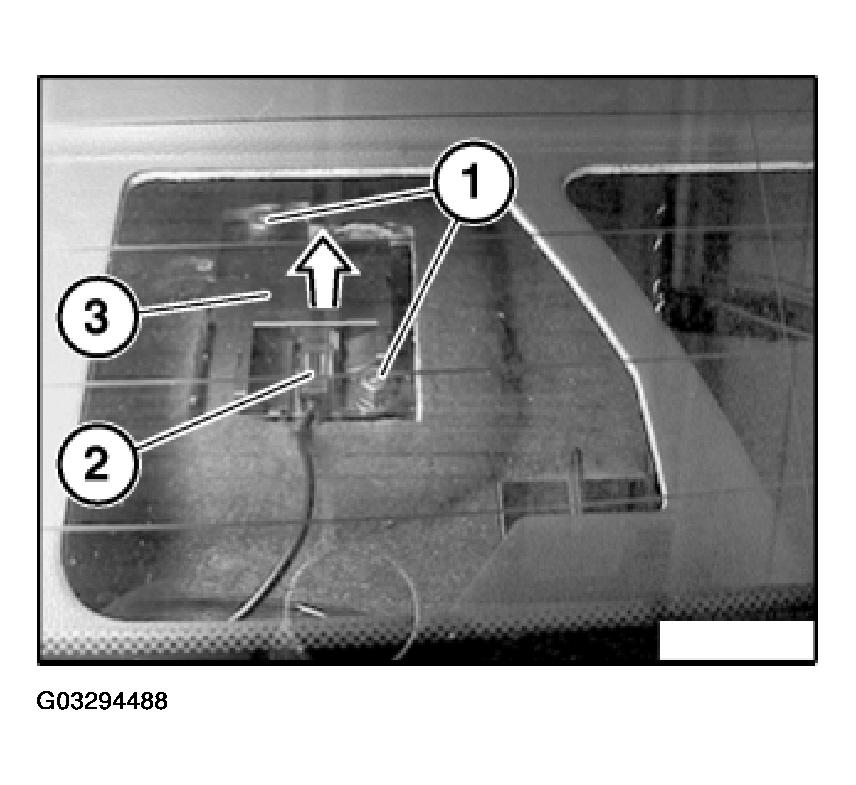

Unscrew nuts (1).
Unfasten plug connection (2) and disconnect.
Remove basic antenna (3) in direction of arrow.
