67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlight)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Xenon headlights: Danger to life due to high voltage! Therefore disconnect xenon headlights from the power supply. Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

After installation:

Adjusting headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .

Necessary Preliminary Tasks:

Remove left headlight (xenon headlight). Refer to 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

Release screws (1) and fold down cover cap for headlight vertical aim adjuster (2).

Unlock catch and remove high beam cover cap (3) in direction of arrow.

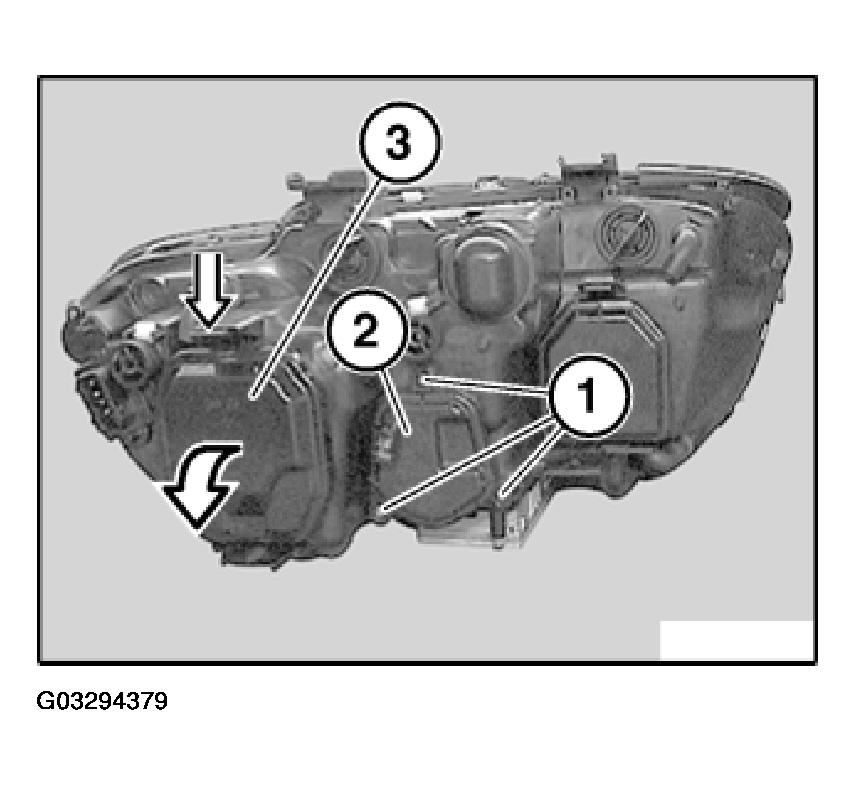

Fig 1: Removing High Beam Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date Up To 03/2005:

Disconnect plug connection (1) and remove cover cap for headlight vertical aim adjuster (2).

Release screws (3).

Feed out headlight vertical aim adjuster (4) in direction of arrow and remove.

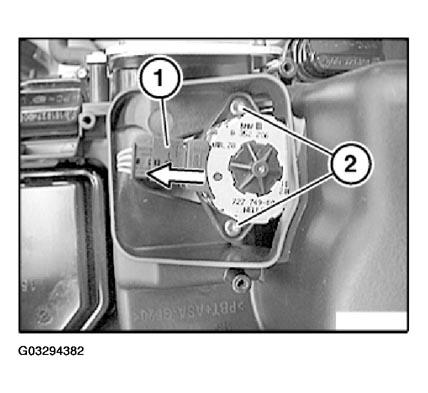

Fig 2: Removing Cover Cap For Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed ball head (1) of headlight vertical aim adjuster (2) in direction of arrow into mounting (3).

Pass headlight through removed cover cap for low-beam headlight to facilitate the feed-in process. Ball head (1) must audibly snap into place in mounting (3).

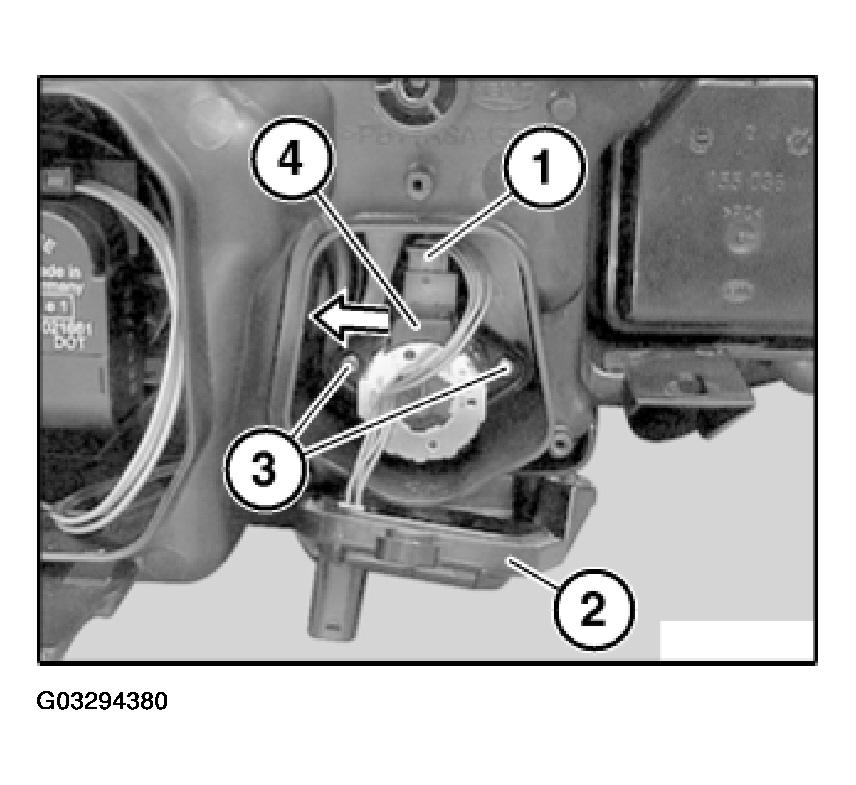

Fig 3: Identifying Ball Head Of Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date From 03/2005:

Disconnect plug connection (1).

Release screws (2) and slide headlight vertical aim adjuster to left and remove towards rear.

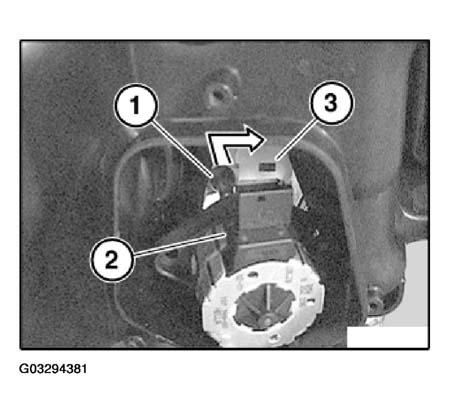

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Move ignition unit (1) in direction of arrow until mounting (2) approaches opening.

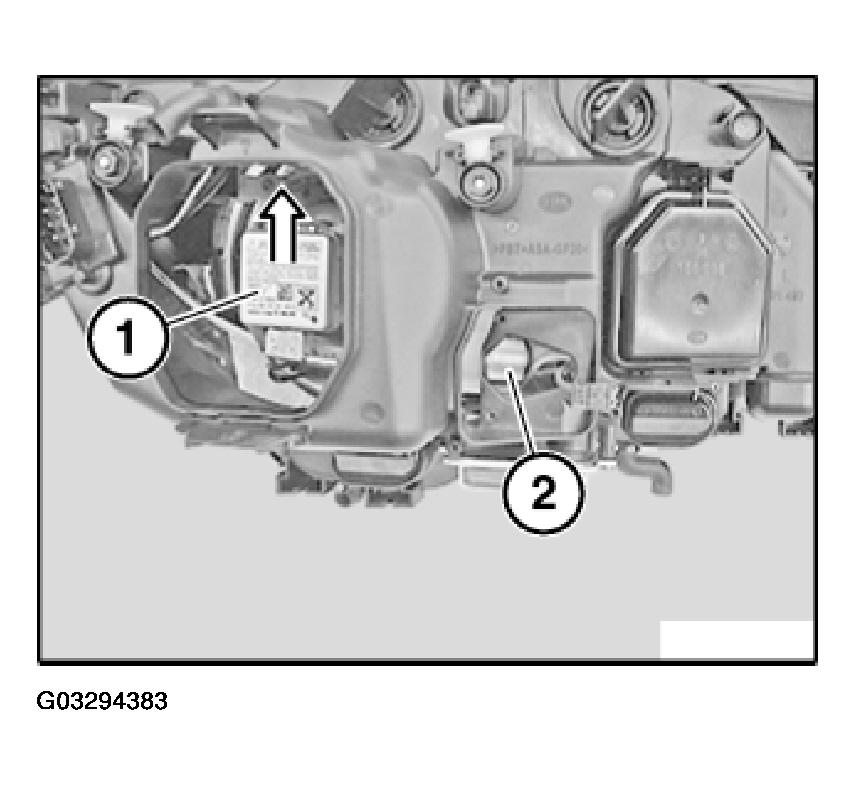

Fig 5: Identifying Ignition Unit

Courtesy of BMW OF NORTH AMERICA, INC.
