67 13 001 Replacing Drive Unit For Electrically Operated Left Or Right Door Mirror

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove mirror glass for mirror. Refer to 51 16 026 REPLACING MIRROR GLASS .

Release screws (1).

Fold out drive unit for electrically operated door mirror (2) in direction of arrow.

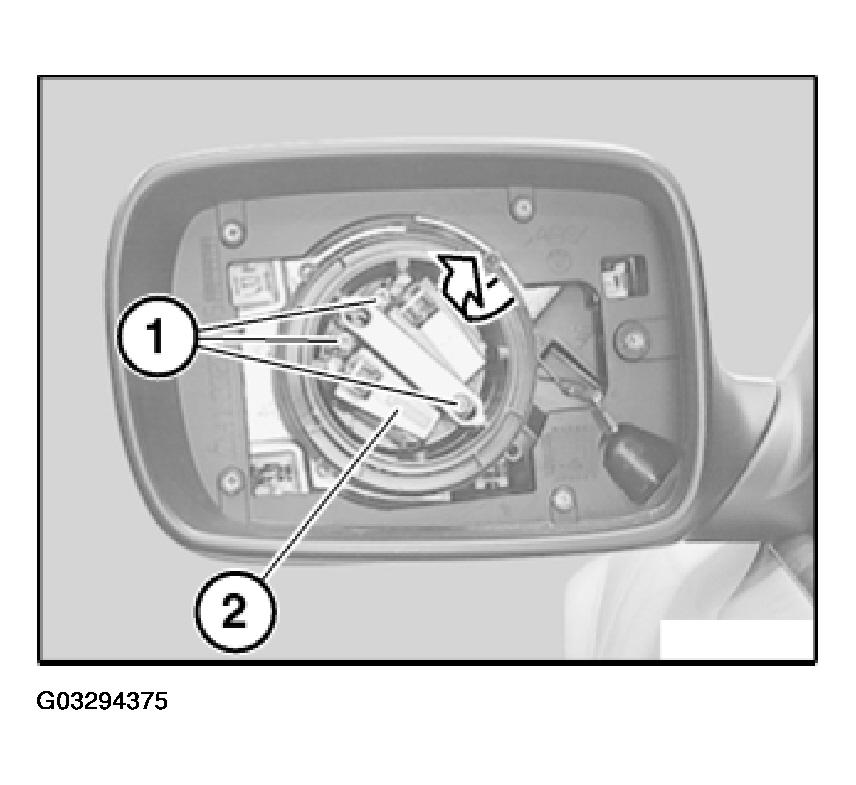

Fig 1: Locating Door Mirror Drive Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove drive unit for electrically operated door mirror (2).

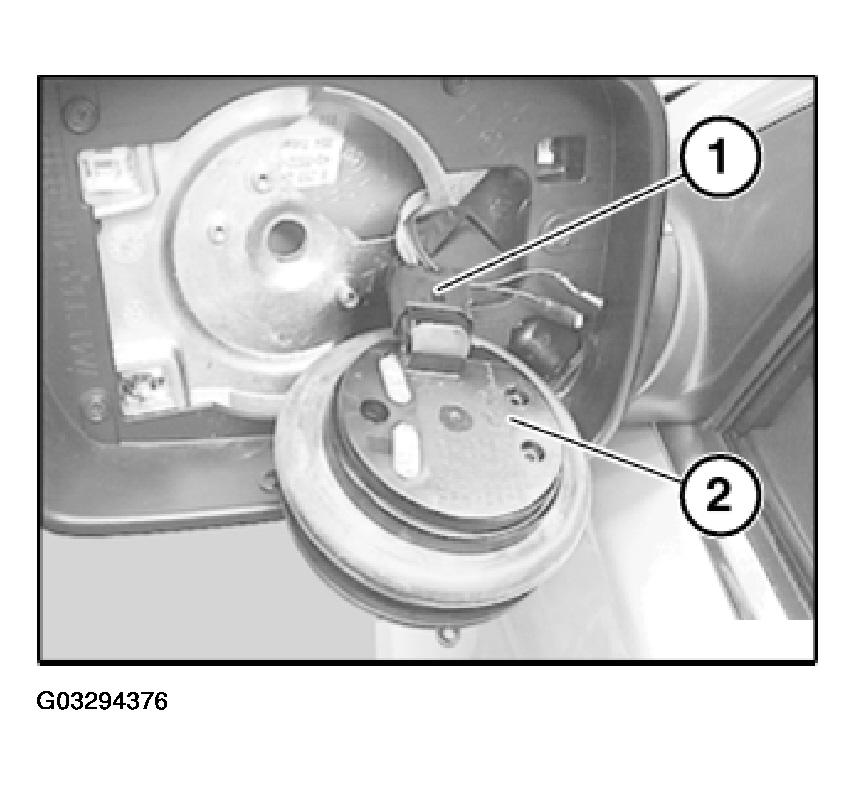

Fig 2: Disconnecting Door Mirror Drive Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
