67 62 020 Removing And Installing/Replacing Flat Motor For Rear Left Or Right Power Window Regulator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove function carrier in rear door

Unlock plug connection (1) and disconnect.

Release screws (2), tightening torque 51 33 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES . Slacken screw (3) on retaining clip.

Press flat motor for power window (4) towards rear out of mounting and feed out in direction of arrow.

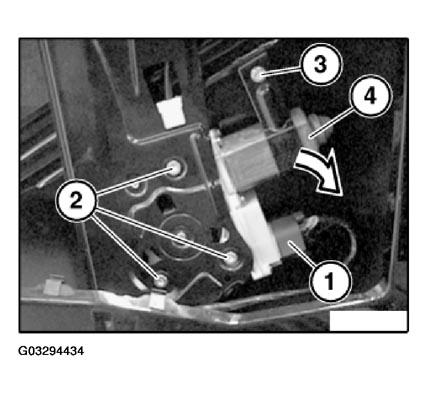

Fig 1: Locating Flat Motor Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are correctly seated when fitting retaining clip (2).

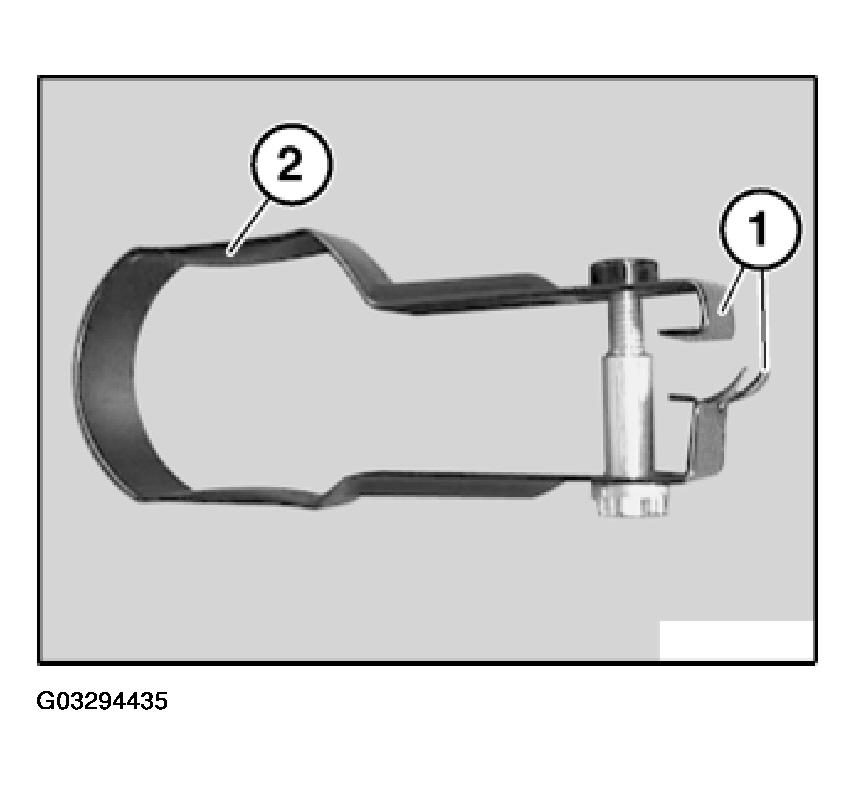

Fig 2: Identifying Guides And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize power window. Refer to 67 62 ... NOTES ON INITIALIZING POWER WINDOW .
