67 65 019 Removing And Installing/Replacing Drive For Left Or Right Roller Sun Blind

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install rear door trim. Refer to 51 42 000 Removing And Installing Left Or Right Rear Door Trim Panel

NOTE: Removal is shown on drive for roller sun blind (door window). Roller sun blind (fixed door window) is removed in same way.

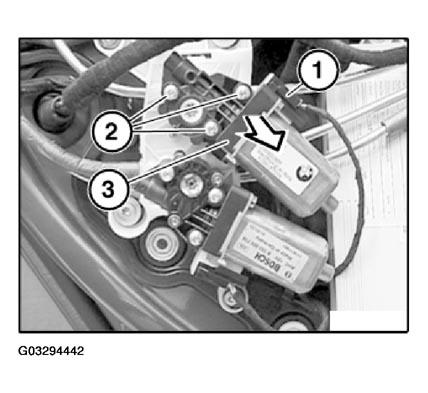

Unlock plug connection (1) and disconnect.

Release screws (2).

Installation:

Observe tightening torque, refer to 67 65 1AZ in ELECTRICAL DRIVES - TIGHTENING TORQUES .

Remove drive for roller sun blind (3) in direction of arrow.

Fig 1: Removing Drive For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

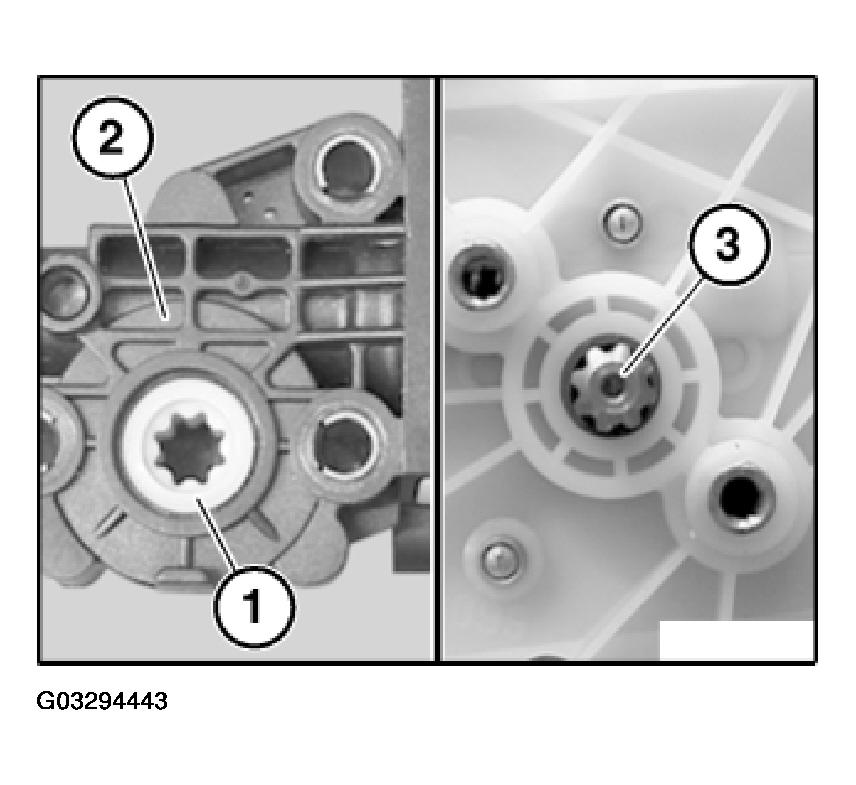

Toothing (1) of drive for roller sun blind (2) must be placed exactly on shaft (3).

Fig 2: Identifying Drive And Shaft For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
