67 65 010 Removing And Installing Or Replacing Drive Unit For Roller Sun Blind

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove roller sun blind (refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF ).

Release screw (1).

Remove drive linkage (2).

Mark installation position of servodrive on bracket (3).

Installation:

Ensure correct cable routing.

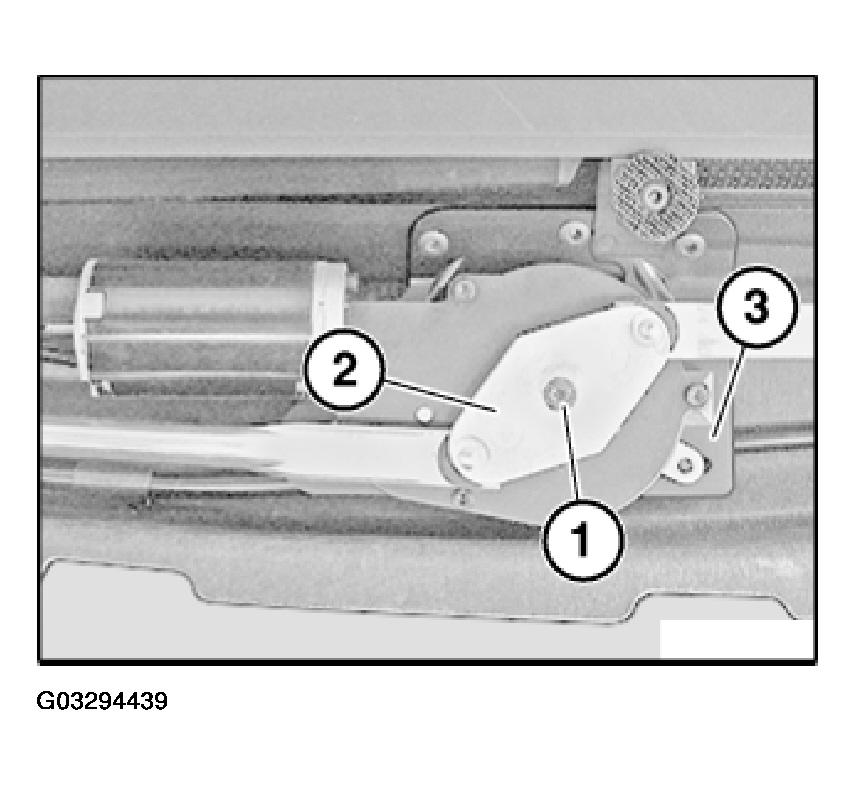

Fig 1: Locating Drive Linkage Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not damage electrical lead for roller sun blind drive unit when drilling.

Arrange bores according to dimensions (A - D) and release screws underneath for roller sun blind drive unit.

Remove roller sun blind drive unit.

Dimensions from reference line (1):

A = 155 mm.

B = 60 mm.

C = 60 mm.

D = 30 mm.

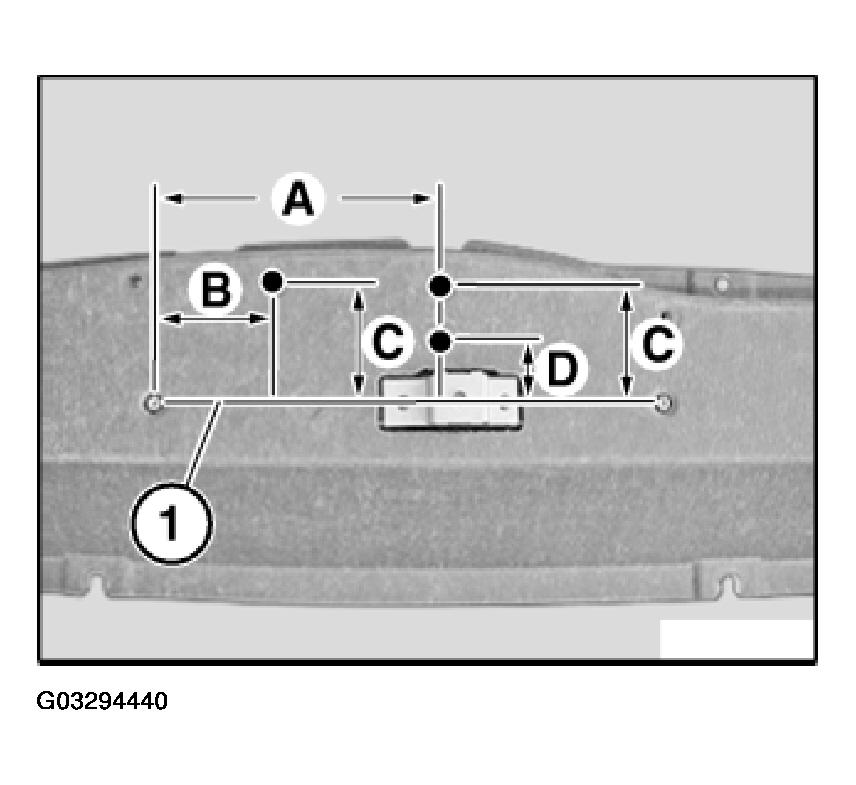

Fig 2: Identifying Bore Arrangement Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Drive linkage (2) can only be installed in one position.

Installation:

Install drive linkage (2) and insert screw (1).

Secure drive unit to bracket (3).

Tighten screw (1).

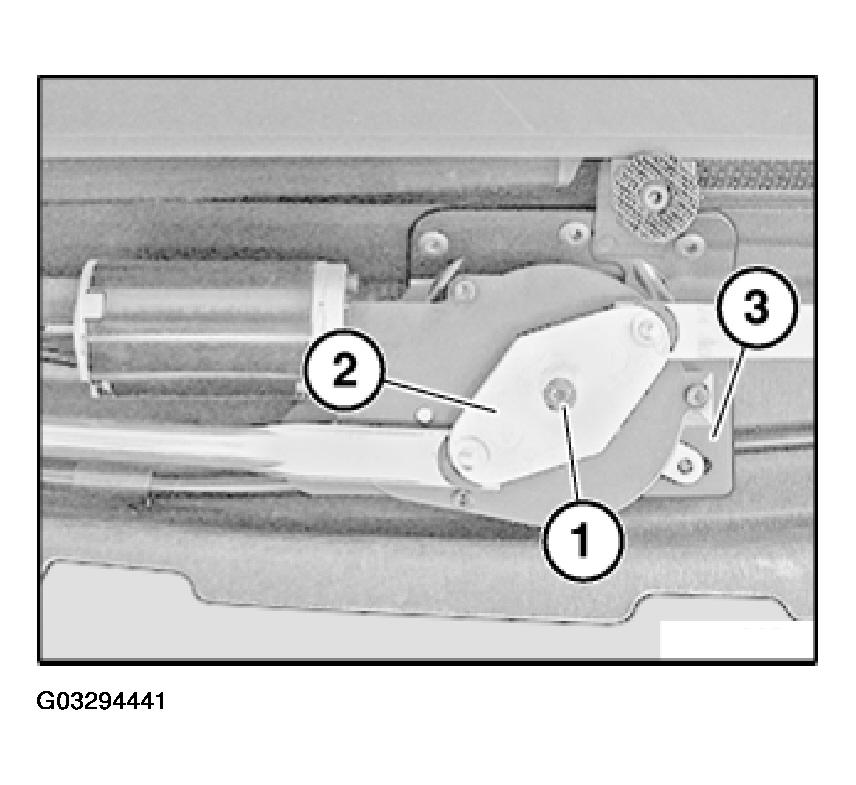

Fig 3: View Of Drive Linkage

Courtesy of BMW OF NORTH AMERICA, INC.
