67 61 005 Removing And Installing (Replacing) Drive With Gear For Actuating Slide/Tilt Sunroof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front console insert. Refer to 61 31 175 REMOVING AND INSTALLING/REPLACING SWITCH FOR SLIDE/TILT SUNROOF .

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

Release screws (1).

Remove drive with gear for actuating slide/tilt sunroof (2) and disconnect plug connection (3).

Installation:

Replace screws (1).

Fig 1: Removing Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert gear wheel (1) of drive for actuating slide/tilt sunroof (2) in gear teeth (3).

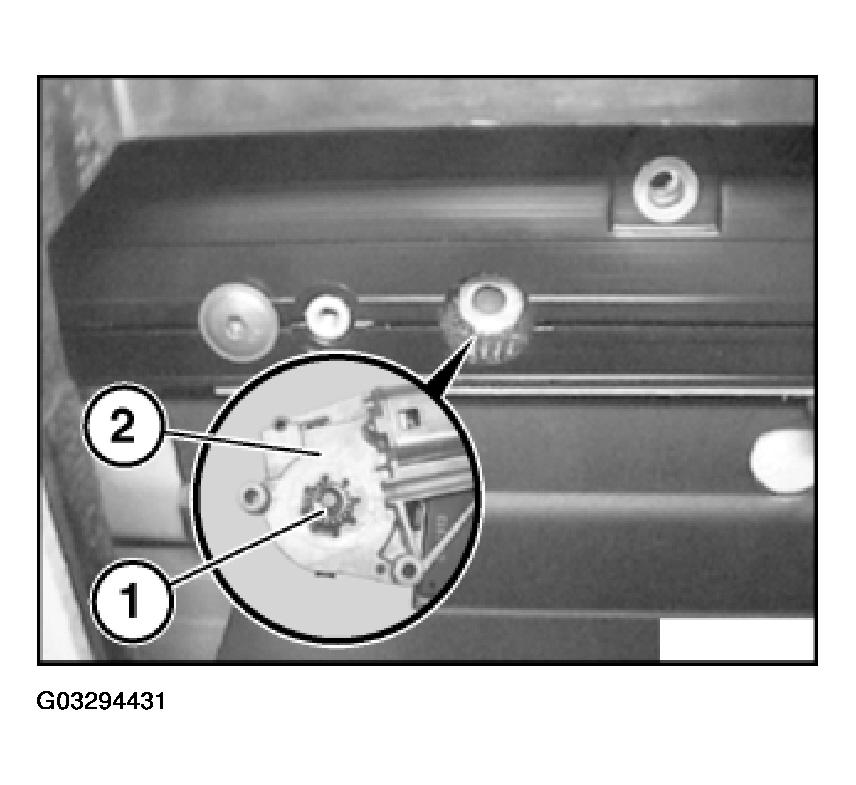

Fig 2: Inserting Gear Wheel In Gear Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize drive for actuating slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .

IMPORTANT: Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .

IMPORTANT: There is a risk of permanent battery discharge if programming/coding is not carried out!
