67 66 013 Removing And Installing/Replacing Drive Unit For Lumbar Support On Left Or Right Front Seat (Active Seat)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

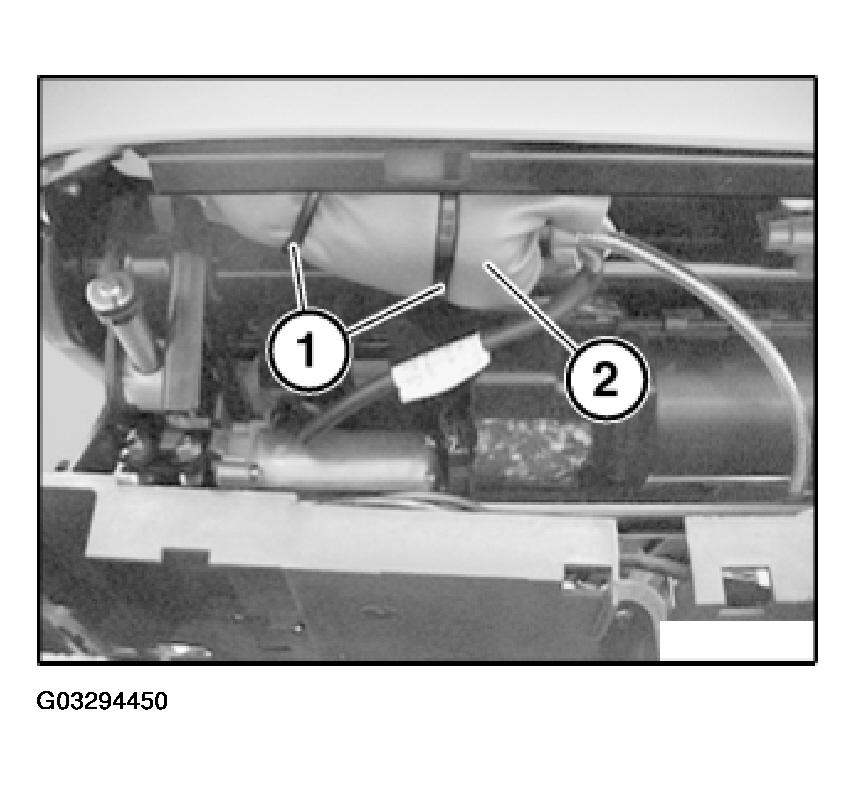

Cut through cable ties (1).
Set down drive unit for lumbar support (2) with jacket towards bottom.

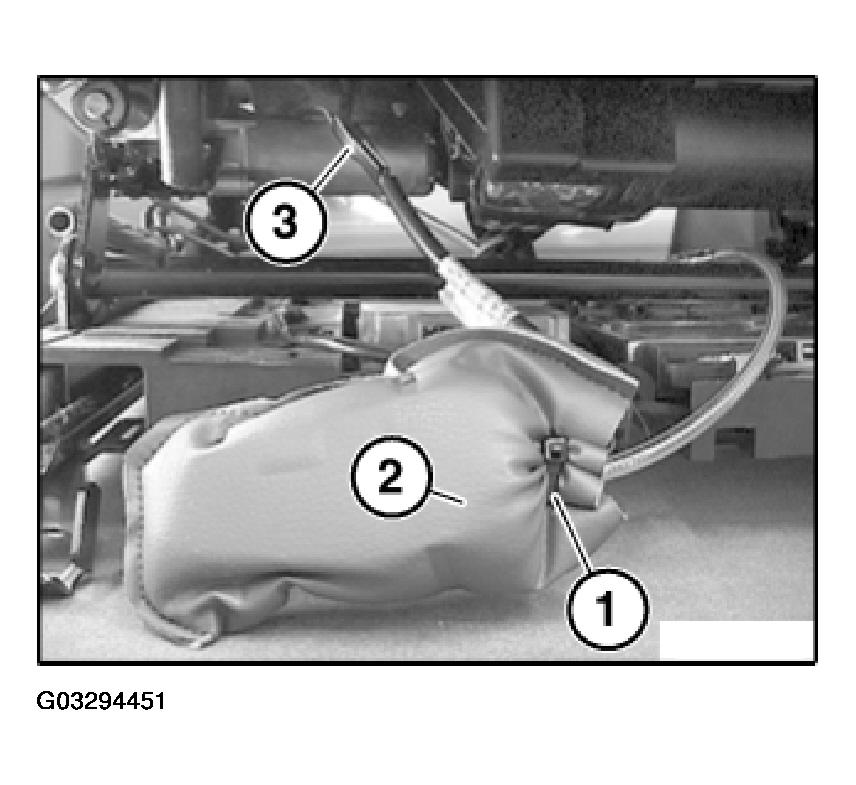

Cut through cable tie (1) on jacket of drive unit for lumbar support (2).
Disconnect plug connection (3).

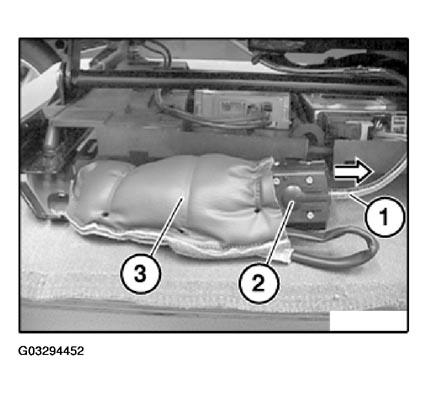

Detach hose (1) in direction of arrow.
NOTE:
If firmly seated, gently heat hose (1) on drive unit for lumbar support (2).
Installation:
Make sure hose (1) is laid without kinks.
Remove drive unit for lumbar support (2).
Replacement:
Pull drive unit for lumbar support (2) out of jacket (3).
