67 32 650 Replacing Fan For Rear Seat Surface (Comfort Seat)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Remove padding for rear seat. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

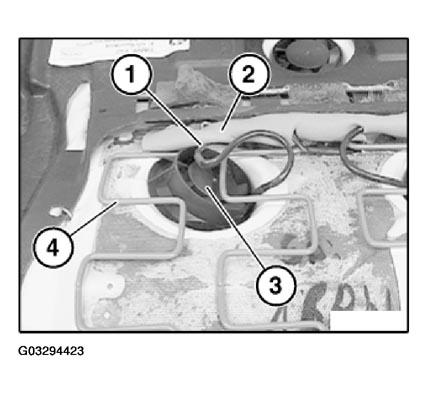

Pull lead (1) slightly out of jacket (2) and disconnect plug connection behind.
Feed fan for seat surface (3) as illustrated out of seat frame (4) and remove.
