67 32 620 Replacing Fan For Thigh Support On Front Seat (Comfort Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove thigh support. Refer to 52 17... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT .

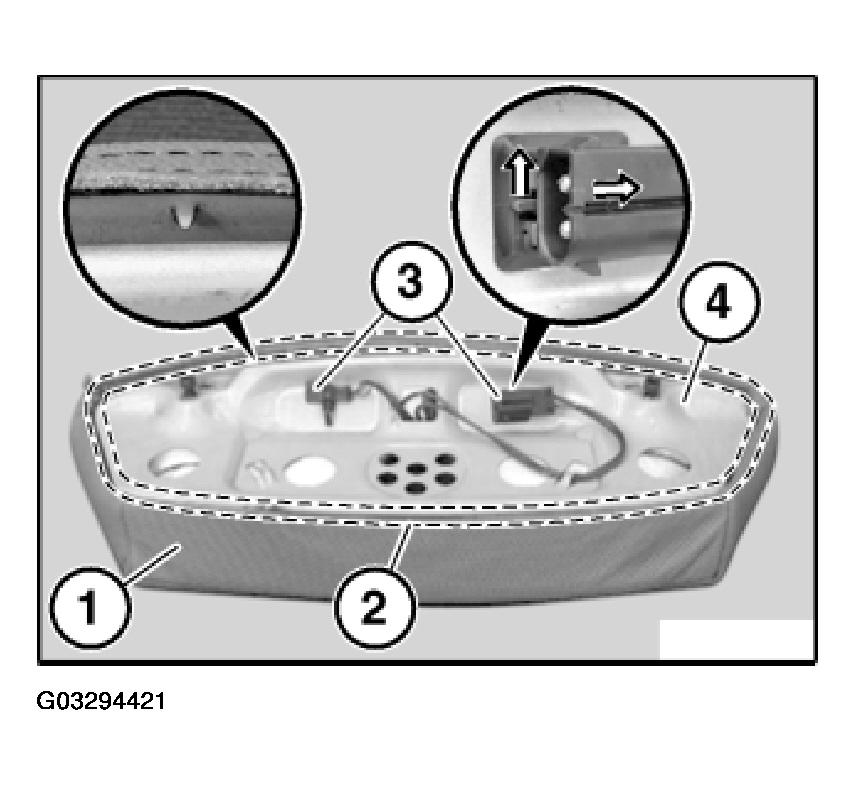

Unhook seat cover (1) in area (2).

Feed out plug housing (3) through opening in trim (4).

Remove trim (4).

Fig 1: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

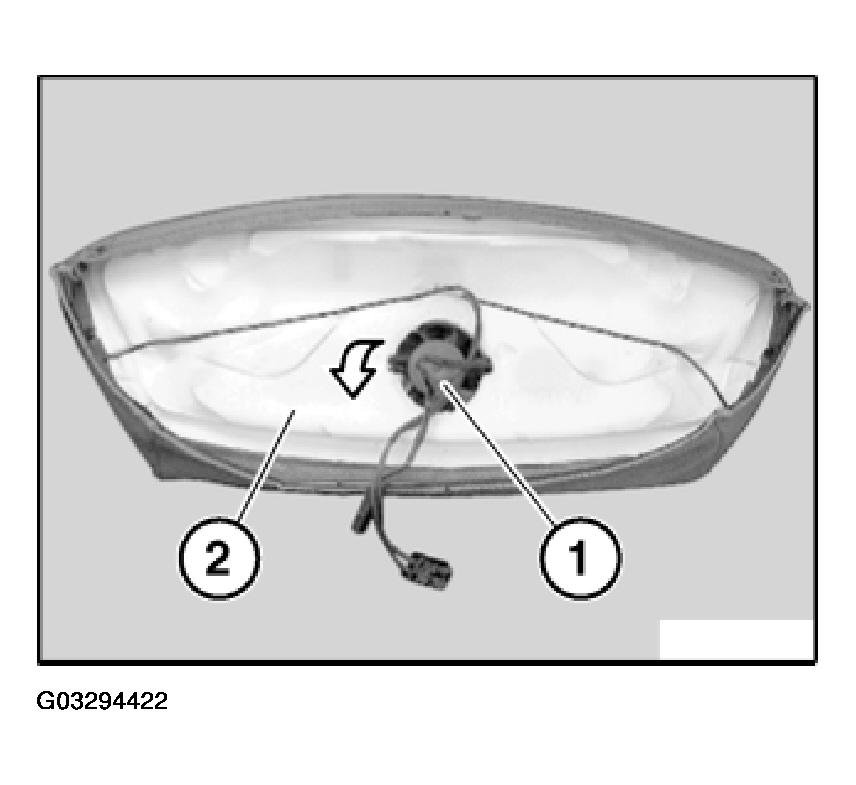

Feed fan (1) in direction of arrow out of thigh support cushion section (2) and remove.

Fig 2: View Of Fan In Thigh Support Cushion Section

Courtesy of BMW OF NORTH AMERICA, INC.
