67 32 600 Replacing fan for front seat surface (comfort seat)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CND Front Passenger Seat (With OC3 Mat) Only:
Seat cover must not be separated from padding. All parts must be replaced completely and released with the diagnosis system in event of defective fan, seat cover, seat heating, OC3 mat or padding.
Necessary Preliminary Tasks:
- Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) and 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
- Partially remove cover for front seat. Refer to 52 17 400 REMOVING AND INSTALLING/REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .
NOTE:

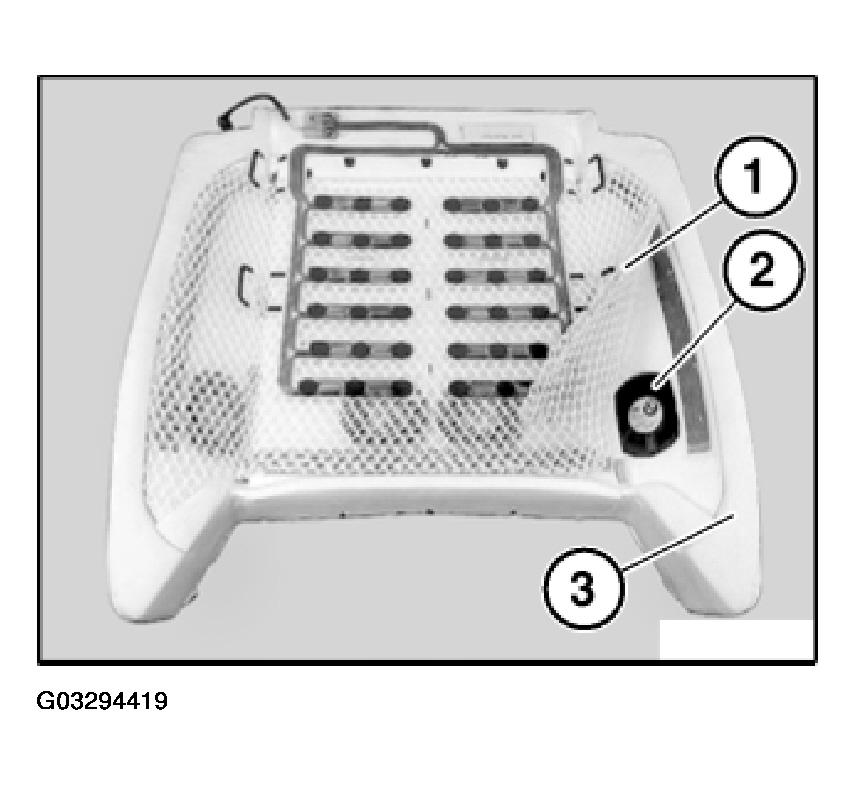

For purposes of clarity, illustration shows seat padding and seat cover removed.
Lift dividing net (1), pull fan for seat surface (2) out of seat padding (3) slightly and disconnect plug connection behind. Remove fan for seat surface (2).
