66 54 005 Removing and installing control unit for night vision system

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove safety information module, refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .

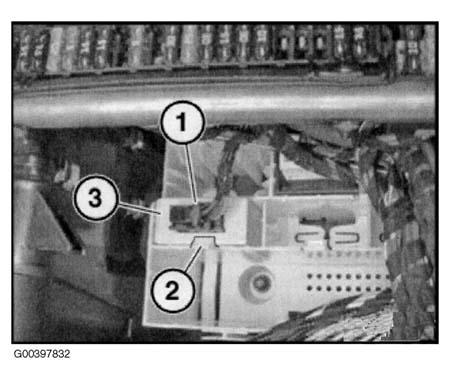

Disconnect plug connection (1), press lug (2) downwards and remove control unit (3) from module carrier.

Fig 1: Night Vision System Control Unit, Plug Connection And Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .
