65 90 511 Removing And Installing (Replacing) Navigation Computer With CD Drive

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AUDIO, NAVIGATION AND ANTI-THEFT - SPECIAL TOOLS .

Special Tools Required:

65 5 400

Necessary Preliminary Tasks:

Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Unlock navigation computer (1) with special tool 65 5 400 and pull out.

Unlock plug connections behind and disconnect.

Remove navigation computer (1).

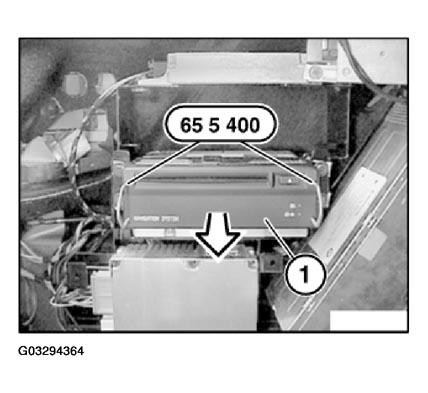

Fig 1: Navigation Computer, Special Tool (65 5 400) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

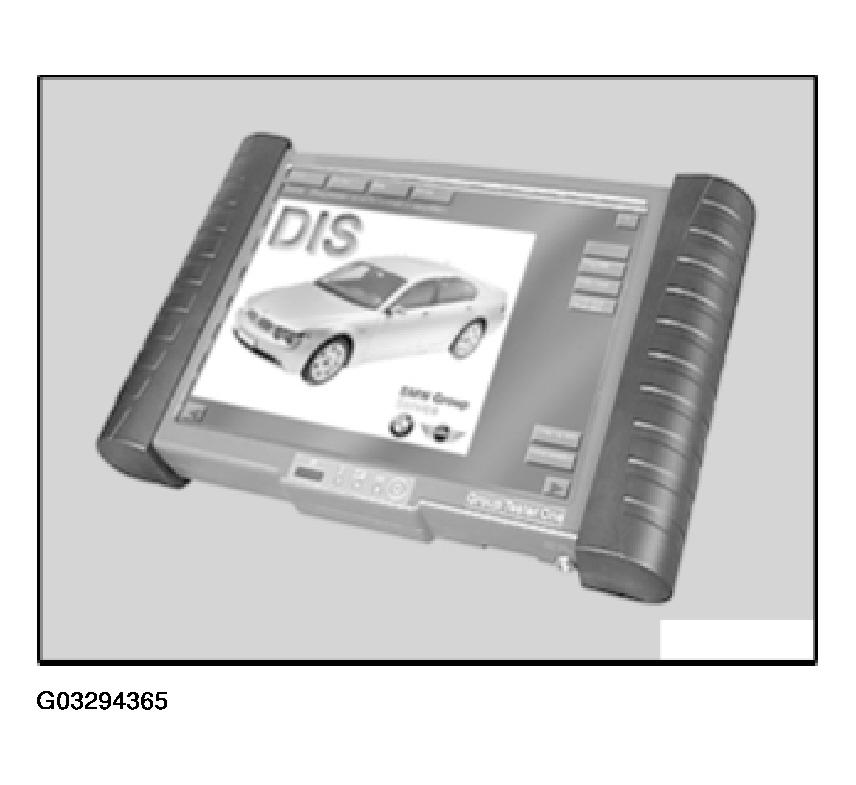

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
