65 81 060 Removing And Installing/Replacing External Temperature Sensor

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Unclip outside temperature sensor (1) in direction of arrow from mounting (2).

Installation:

Make sure outside temperature sensor (1) is correctly engaged in mounting (2).

Pull out outside temperature sensor (1).

Disconnect plug connection and remove outside temperature sensor (1).

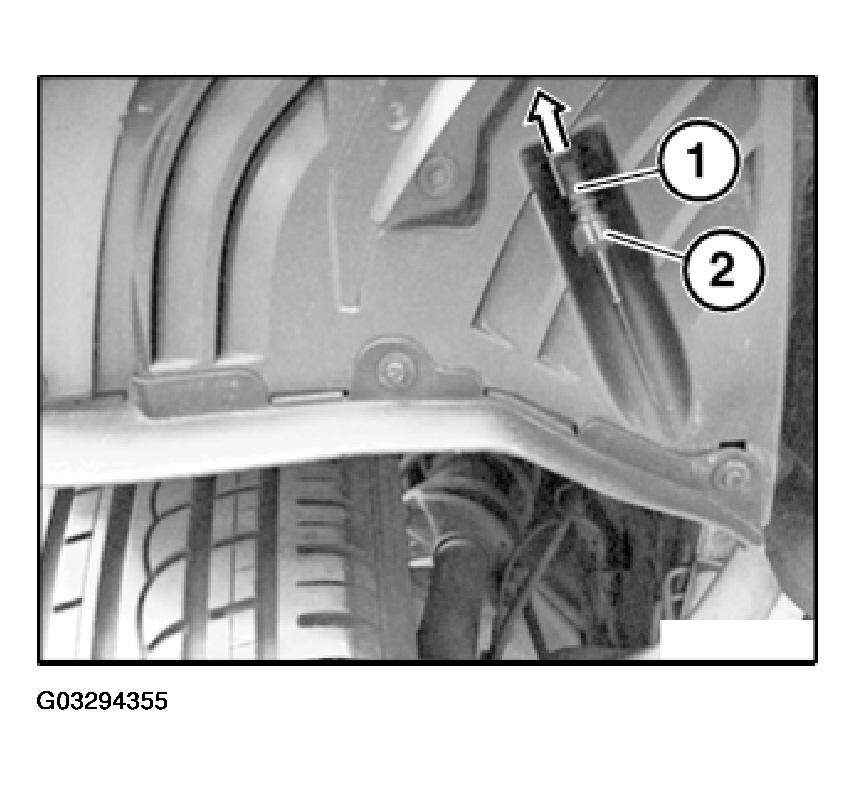

Fig 1: Outside Temperature Sensor, Mounting And Removal Direction
G03294355Courtesy of BMW OF NORTH AMERICA, INC.
