65 77 730 Removing And Installing (Replacing) Vehicle Center Sensor

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Incorrect handling can activate airbag and cause injury. Refer to 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove center armrest. Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT)

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove vehicle center sensor (3).

Installation:

Tightening torque, refer to 65 77 6AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Make sure sensor is mounted without play.

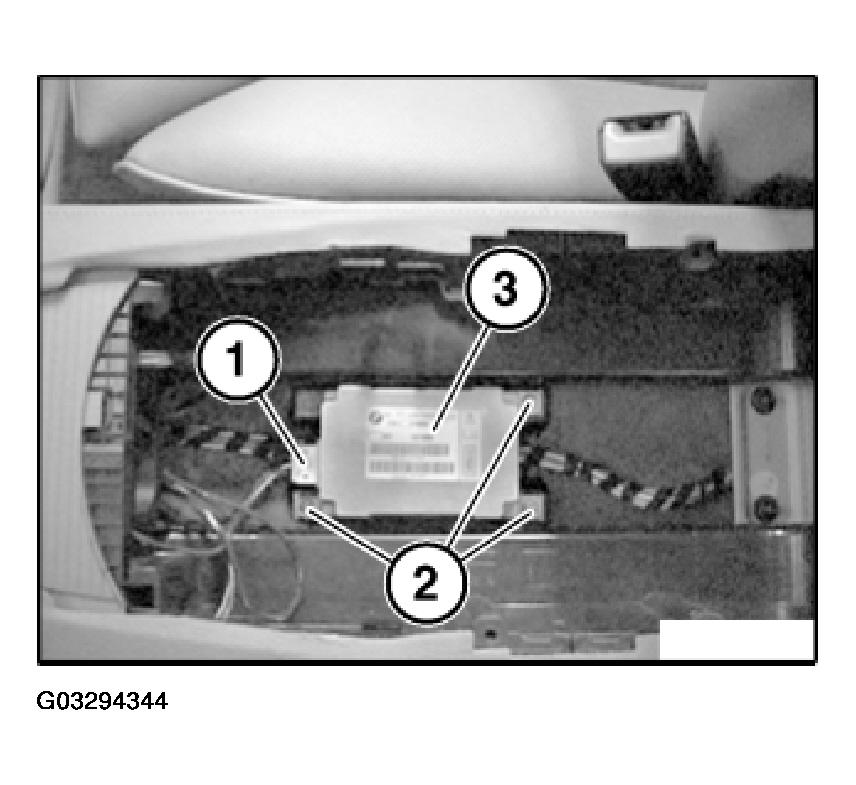

Fig 1: Vehicle Center Sensor, Plug Connection And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding
Car & Key Memory.
CD "CIP"

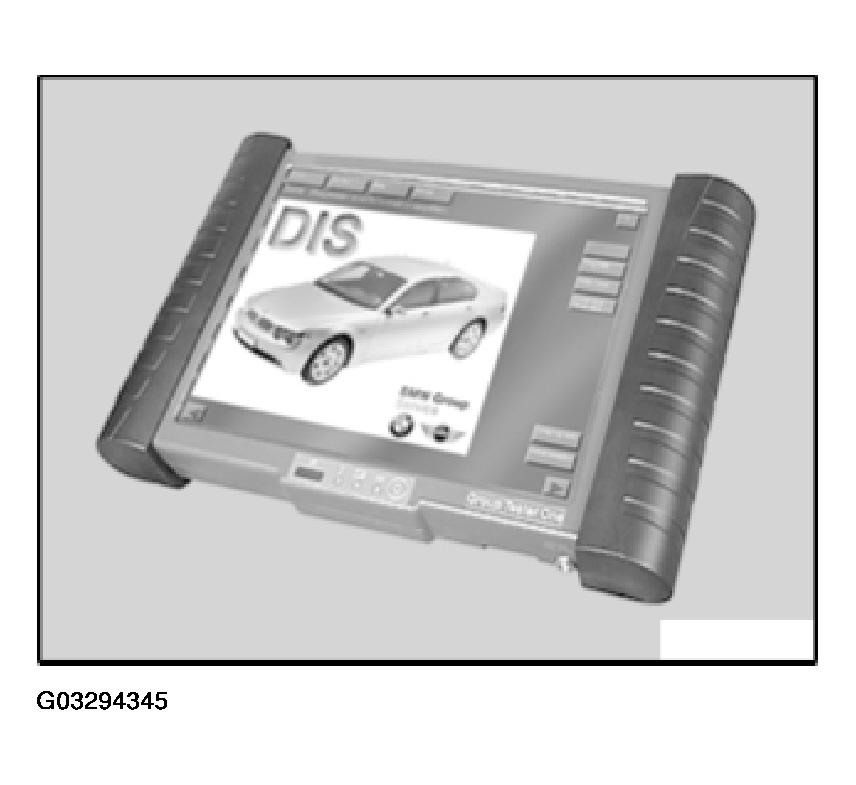

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
