65 77 720 Removing And Installing (Replacing) Left B-Pillar Sensor

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Incorrect handling can activate airbag and cause injury. Refer to 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove panel for door pillar. Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
Remove retractor for front seat belt and place to one side.

Unscrew bolt (1).

Loosen screws (2).

Installation:

Tightening torque, refer to 65 77 5AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Make sure sensor is mounted without play.

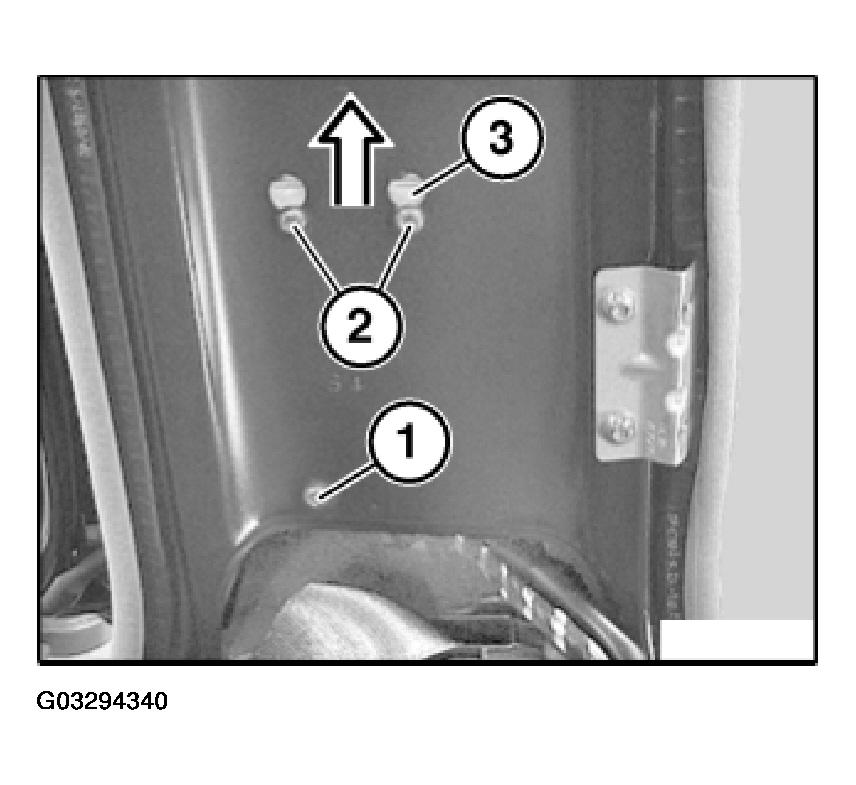

Lift B-pillar sensor (3) slightly at screws (2) and remove towards rear in B-pillar.

Fig 1: B-Pillar Sensor, Screws, Bolts And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

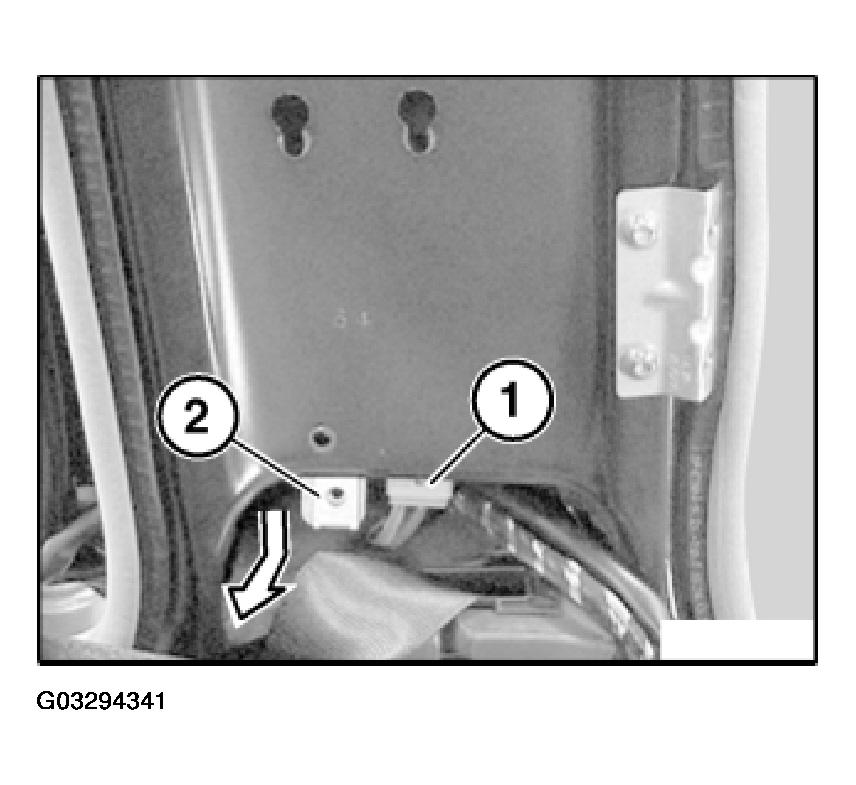

Unfasten plug connection (1) and disconnect.

Feed B-pillar sensor (2) in direction of arrow out of B-pillar and remove.

Fig 2: B-Pillar Sensor, Plug Connection And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

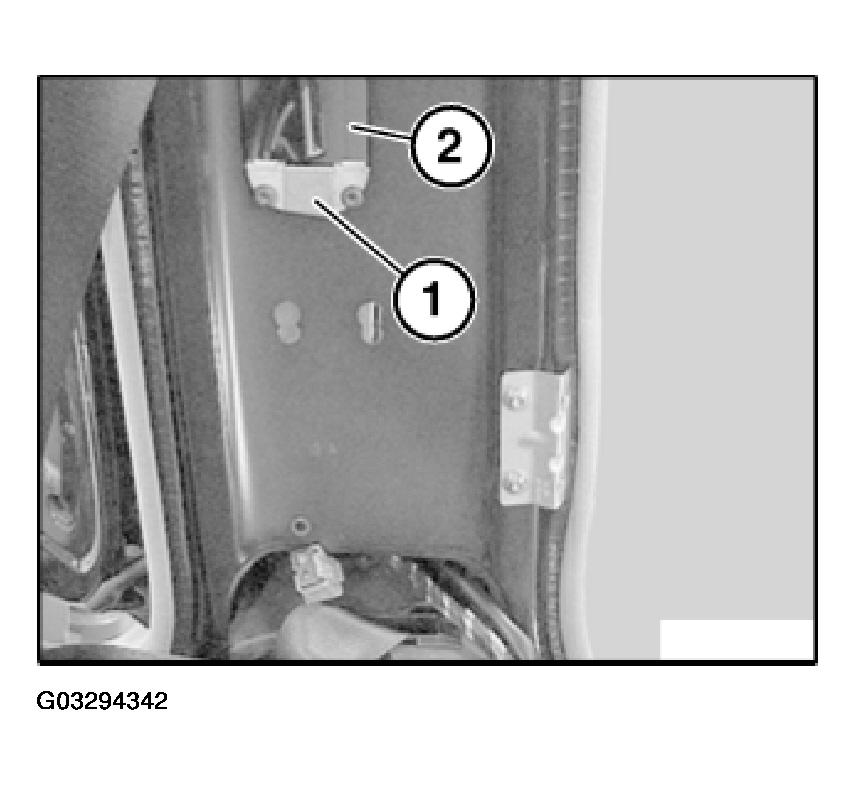

For improved positioning, guide B-pillar sensor (1) if necessary through opening in B-pillar (2).

Fig 3: B-Pillar Sensor And B-Pillar Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

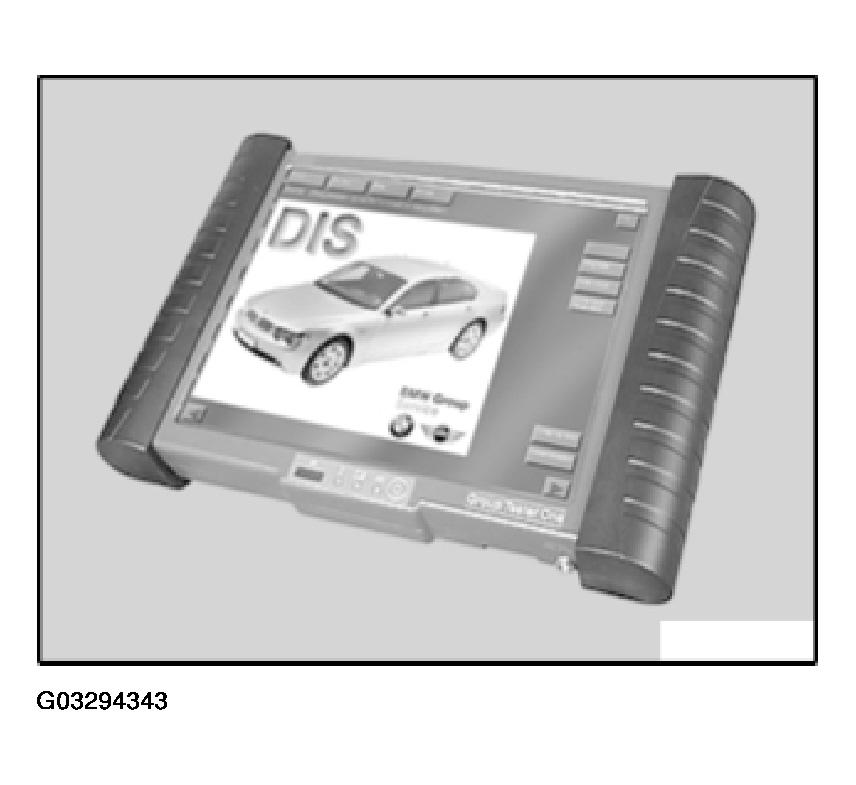

Fig 4: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
