65 77 690 Removing And Installing/Replacing Central Gateway Module (Up To Build Date 03/2004)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove safety information module. Refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .

NOTE: Follow instructions for handling optical fibres. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Unlock catch (1) in direction of arrow.

Pull central gateway module (2) out of control unit carrier (3) slightly.

Disconnect plug connections (4).

Remove central gateway module (2).

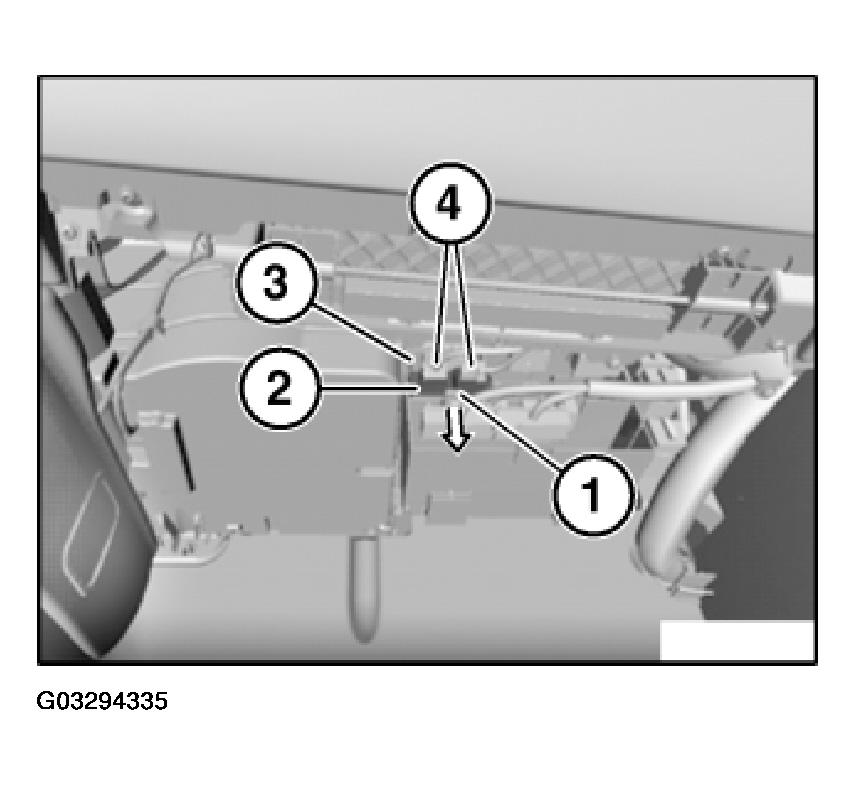

Fig 1: Central Gateway Module, Catch, Plug Connections, Control Unit Carrier And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

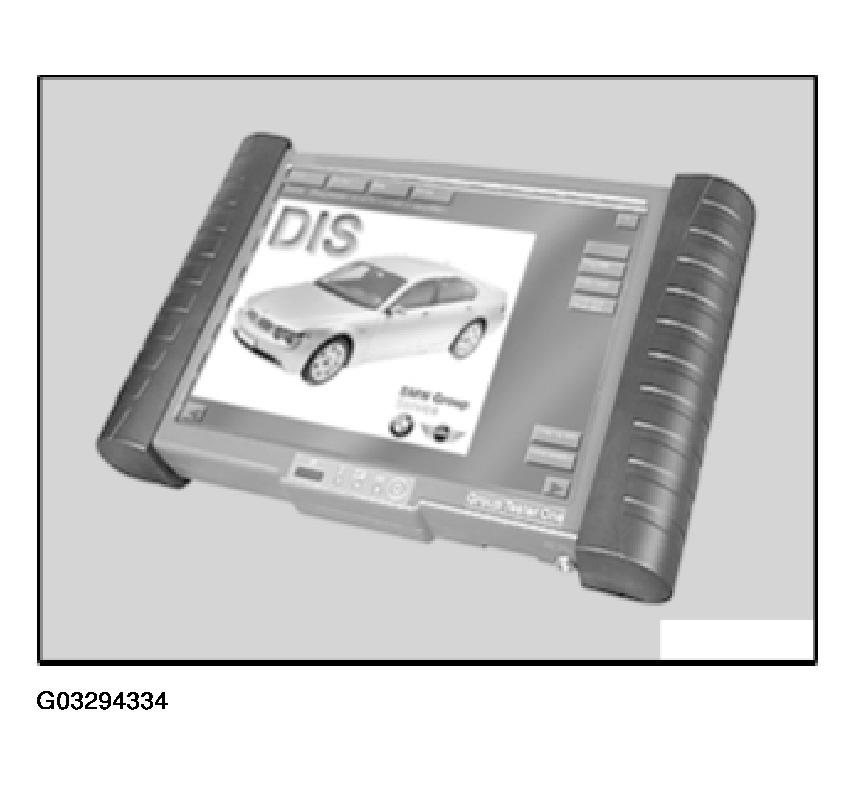

Fig 2: Programming Unit (DIS)

Courtesy of BMW OF NORTH AMERICA, INC.
