65 77 635 Replacing Sensor Mat For Left Or Right Rear Seat Occupancy Detector (Comfort Seat)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove seat cover for rear seat. Refer to 52 25 405 REPLACING SEAT COVER FOR LEFT OR RIGHT REAR SEAT .

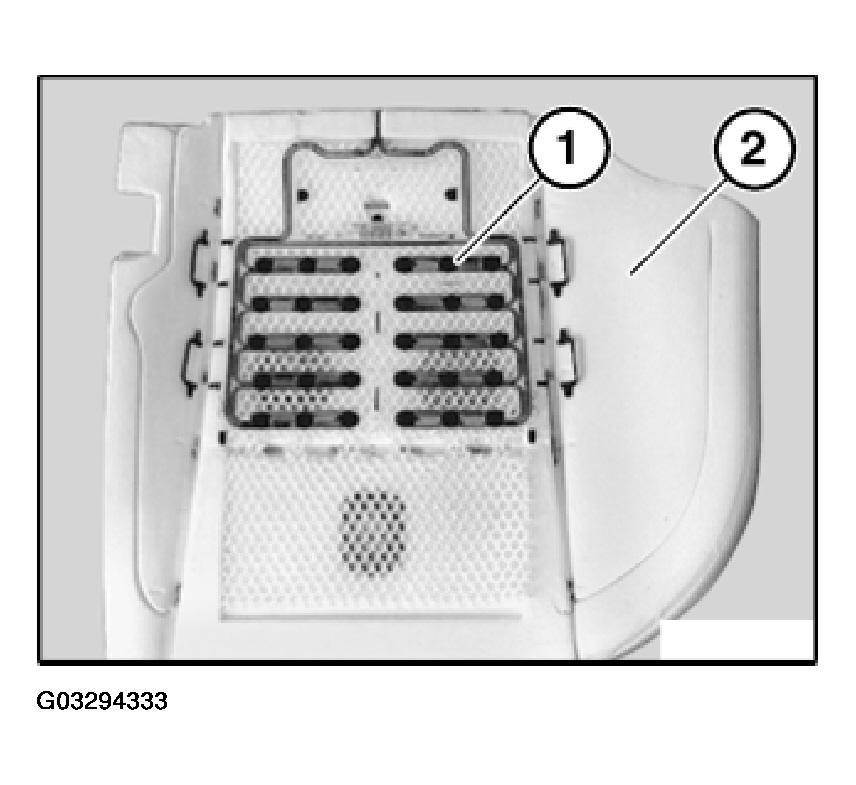

Remove sensor mat (1) from padding (2).
IMPORTANT:
To avoid malfunctions, make sure sensor mat (1) is cleanly laid:
- Lay plug-in connection in designated recess.
- Lay sensor mat (1) straight and without kinks (large bending radii).
- If necessary, secure sensor mat (1) with adhesive tape provided.
- Feed sensor mat (1) in areas of transition (e.g. seat cushion to side section) cleanly into penetrations of padding (1).
