65 77 567 Removing And Installing/Replacing Control Electronics For Rear Seat Occupancy Detector (Comfort Seat)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear seat padding completely. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

Fold felt (1) upwards as illustrated.

Disconnect plug connections (2).

Feed out control electronics for rear seat occupancy detector (3) in direction of arrow and remove.

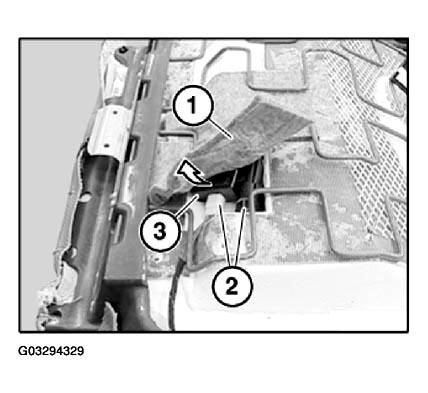

Fig 1: Rear Seat Occupancy Detector Control Electronics, Felt, Plug Connections And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
