65 77 565 Removing And Installing/Replacing Control Electronics For Rear Seat Occupancy Detector (Left Or Right)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

Detach retainers (1) on rear seat (2).

Turn up seat cover (3) in direction of arrow slightly.

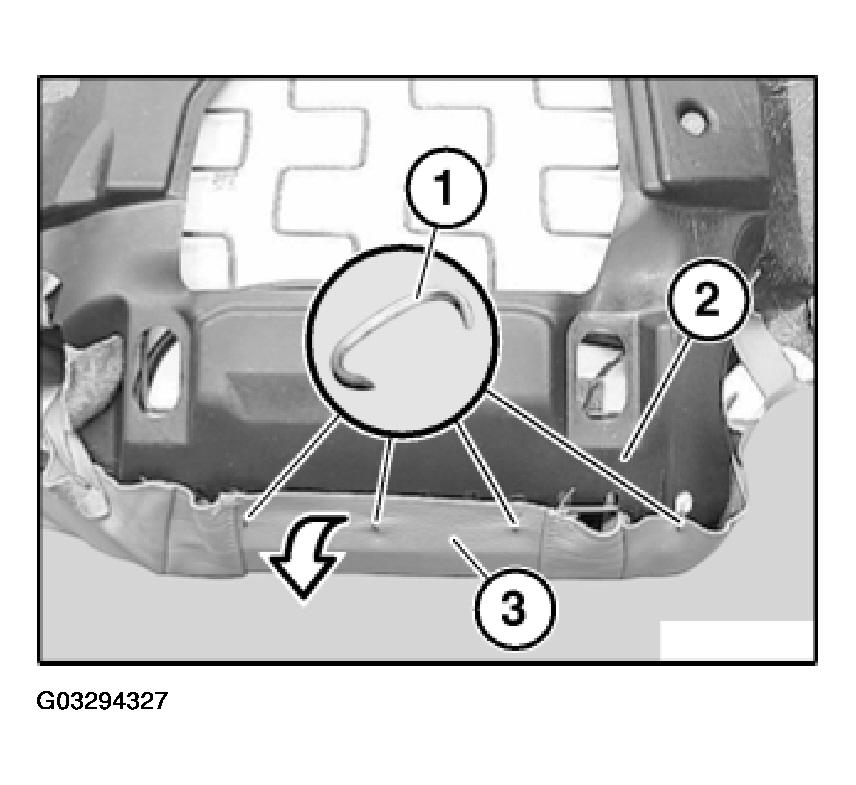

Fig 1: Retainers, Rear Seat, Seat Cover And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Raise seat upholstery section (1) slightly.

Disconnect plug connections (2).

Detach control electronics for rear seat occupancy detector (3) from felt (4) and remove.

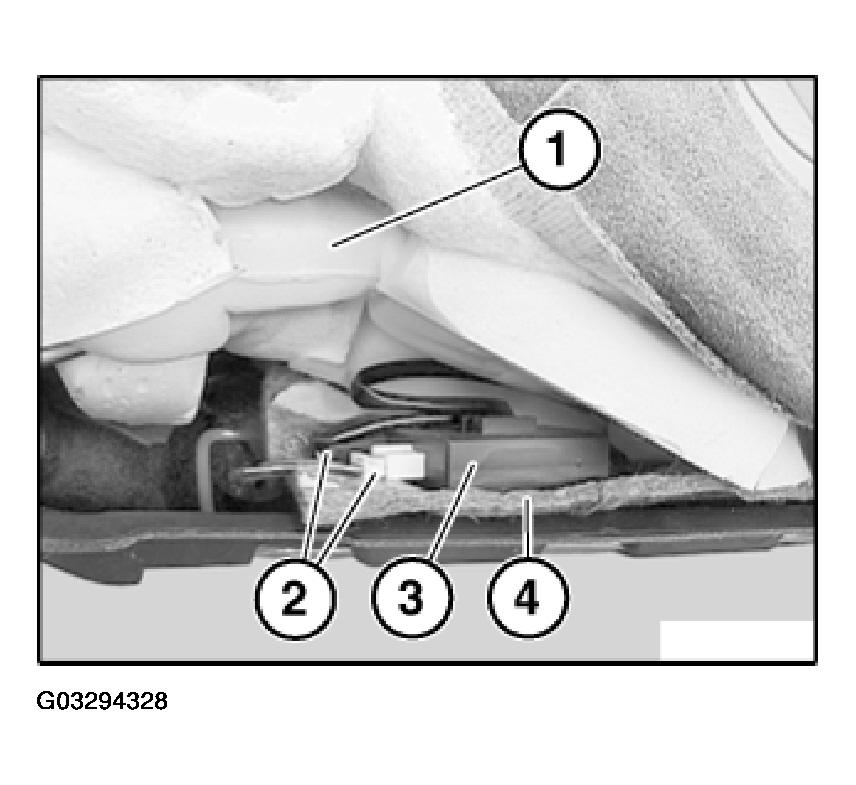

Fig 2: Rear Seat Occupancy Detector Control Electronics, Felt. Plug Connections And Seat Upholstery Section

Courtesy of BMW OF NORTH AMERICA, INC.
