65 50 011 Removing And Installing (Replacing) Video Module For On-Board Monitor
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY .
- Remove flap in luggage compartment panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS
.
Installation:
Do not mix up antenna connectors (1).
Mark antenna plugs (1) and disconnect.
Unlock plug connections (2) and disconnect.
Release screws (3).
Feed out video module for on-board monitor (4) in direction of arrow and remove.

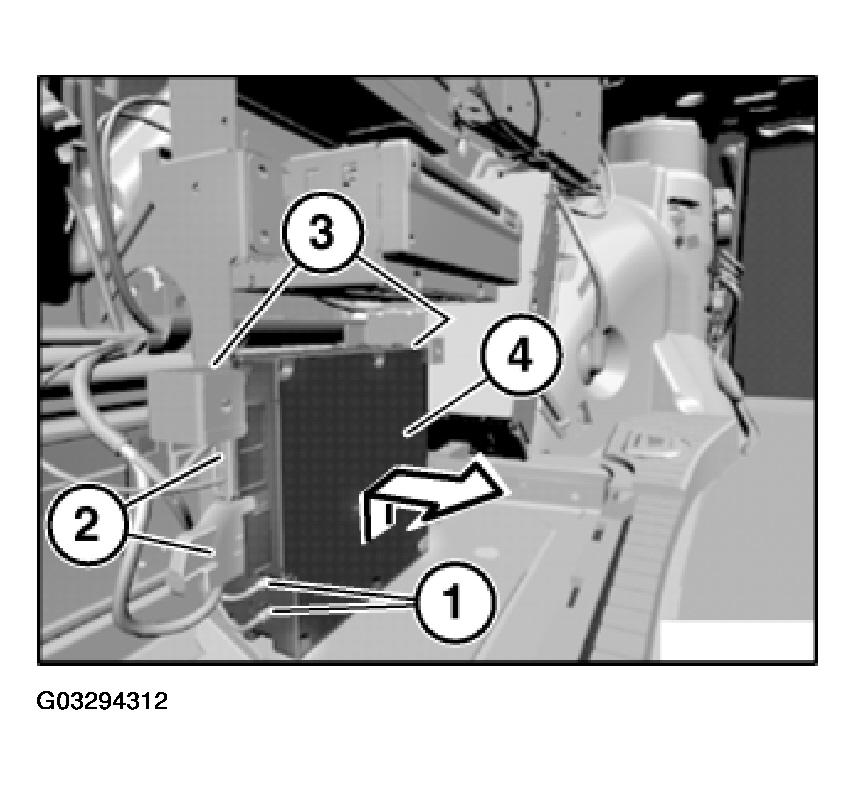

Fig 1: On-Board Monitor Video Module, Antenna Connectors, Antenna Plugs, Retaining Screws And Removal Direction
Replacement:

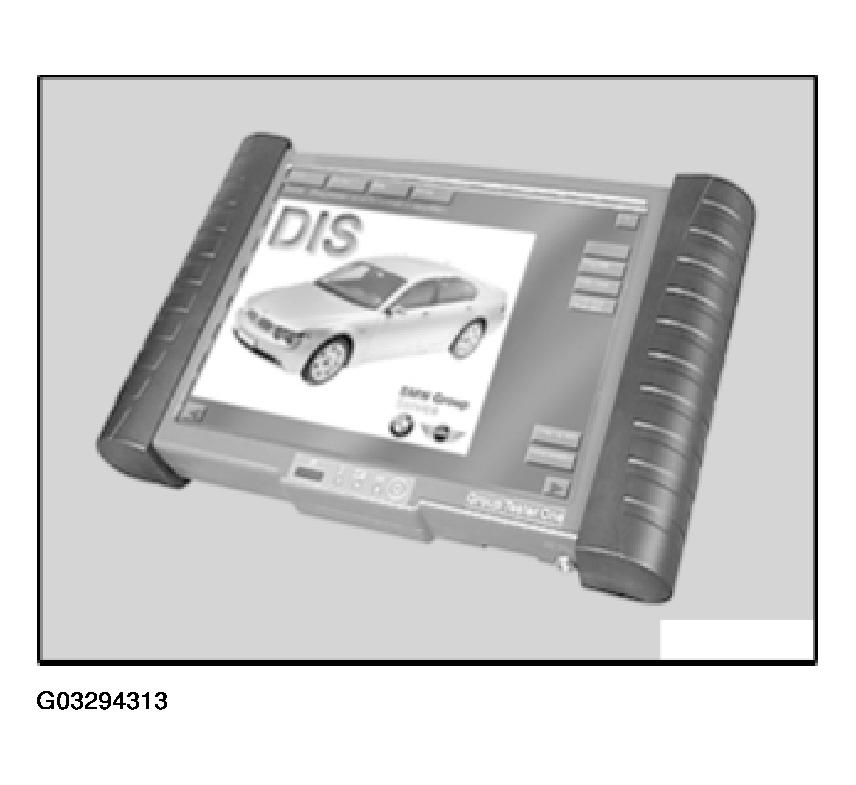

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .
Observe following IDC specifications:
- Programming.
- Coding.
- Car & Key Memory.
- CD "CIP".
